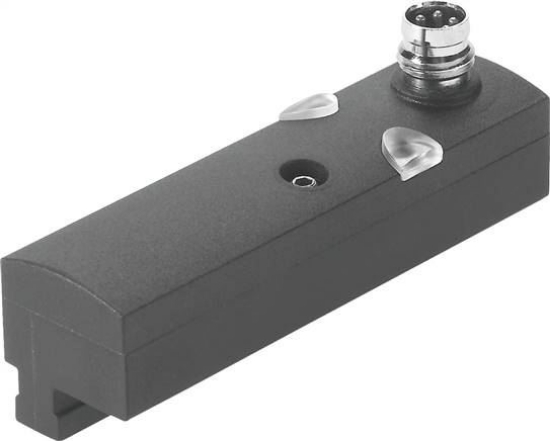

Design
|
For T-slot |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
halogen free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Magnetic |
|
Path measurement range [mm]
|
48 to 52 |
|
ambient temperature [°C]
|
-20 to 50 |
|
Sampling interval type [ms]
|
2,85 |
|
Max. movement speed [m/s]
|
3 |
|
Resolution travel [mm]
|
0,064 |
|
Repeatability in ± mm [mm]
|
0,128 |
|
Analogue output
|
0 - 10 V |
|
Sensitivity current output [Milliamper]
|
0,305 |
|
Sensitivity voltage outputs [Volt pro M]
|
0,152 |
|
Linearity error typical in ± mm
|
±0.25 mm |
|
Max. load resistance current output [Ohm]
|
500 |
|
Min. load resistance voltage output [Kilo-Ohm]
|
2 |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Empty run current [mA]
|
32 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Cable sleeve material
|
TPE-U(PUR) |
|
installation position
|
arbitrary |
|
Product weight [g]
|
15,0 |
|
Housing material
|
PC |
|
Operation-readiness display
|
LED green |
|
Status display
|
LED red=Exit measurement range |
|
Protection category
|
IP65 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
15,0 g / Pcs |
|
GTIN
|
4052568178536 |
|
Customs duty number
|
90318020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMAT-8E (english) , Data sheet |
