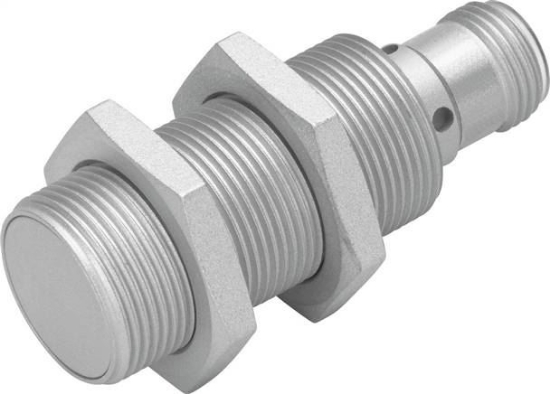

Design
|
round |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Measurement principle
|
Inductive |
|
Measurement switching distance [mm]
|
12,0 |
|
Secured safety distance [mm]
|
9,72 |
|
Reduction factors
|
aluminium = 1,0 |
|
ambient temperature [°C]
|
-30 to 85 |
|
Repeatability [mm]
|
0,24 |
|
Control output
|
NPN |
|
Switching element function
|
NO contact |
|
Hysteresis [mm]
|
0.36 to 1.8 |
|
Max. switching frequency DC [hz]
|
2.000 |
|
Max. output current [mA]
|
200 |
|
Voltage drop [V]
|
<= 1,8 V |
|
Short circuit resistance
|
Cycling |
|
Operating voltage range DC [V]
|
10 to 30 |
|
residual ripple
|
10 % |
|
Empty run current [mA]
|
<= 15 mA |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
Fixcon |
|
size
|
M18 |
|
Fastening type
|
With locking nut |
|
Torque [Nm]
|
15 |
|
Integration type
|
Part flush |
|
Product weight [g]
|
48,0 |
|
Housing material
|
PBT |
|
Switching status indicator
|
LED yellow |
|
Protection category
|
IP67 |
|
Noise immunity to magnetic fields
|
Magnetic direct and alternating field |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Weight
|
48,0 g / Pcs |
|
GTIN
|
4052568175764 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Proximity sensors SIE (english) , Data sheet |
