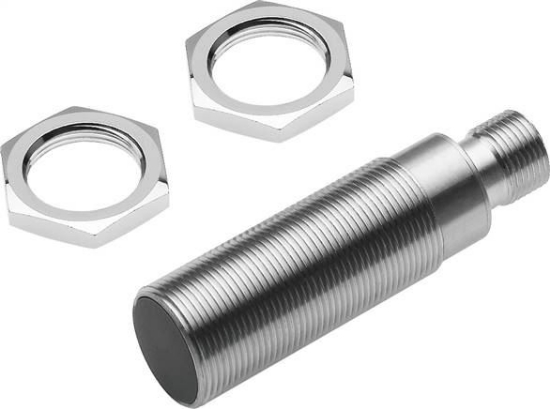

Design
|
round |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measurement principle
|
Inductive |
|
Reduction factors
|
aluminium = 0,18 |
|
Path measurement range [mm]
|
0 to 10 |
|
ambient temperature [°C]
|
-25 to 70 |
|
Resolution travel [mm]
|
0,002 |
|
Repeatability [mm]
|
0,3 |
|
Repeatability at constant conditions
|
± 0,02 mm |
|
Temperature drift from real switching distance
|
<= ±10 % |
|
Max. switching frequency DC [hz]
|
500 |
|
Analogue output
|
0 - 10 V |
|
Tape width
|
500 Hz (-3 dB at s=5 mm) |
|
Max. load current on analogue voltage output [mA]
|
10 |
|
Short circuit resistance
|
Cycling |
|
Overload resistant
|
Available |
|
Max. current / voltage output value without object [%]
|
120 |
|
Output voltage at 23°C
|
0 V / -0 + 0,4 V (s=0 mm) |
|
Operating voltage range DC [V]
|
15 to 30 |
|
residual ripple
|
20 % |
|
Empty run current [mA]
|
<= 10 mA |
|
Reverse polarity protection
|
for operating voltage |
|
electrical connection:
|
M12x1 |
|
size
|
M18 |
|
Fastening type
|
With locking nut |
|
Torque [Nm]
|
25 |
|
Integration type
|
flush |
|
Product weight [g]
|
55 |
|
Housing material
|
brass |
|
Protection category
|
IP67 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Max. load on analogue current output [Ohm]
|
500 |
|
Output current at 23°C
|
4mA / ± 0,8 mA (s=0 mm) |
|
Weight
|
55 g / Pcs |
|
GTIN
|
4052568175719 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Proximity sensors SIE (english) , Data sheet |
