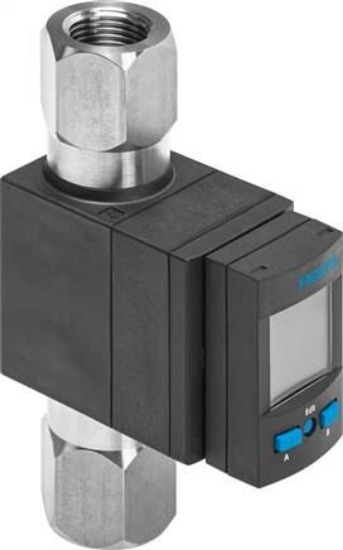

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
flow |
|
Flow direction
|
P1 -> P2 |
|
Measurement process
|
temperature: PT1000 |
|
Flow measurement range starting value [l/min]
|
1,8 |
|
Flow measurement range end value [l/min]
|
32 |
|
Operating pressure [bar]
|
0 to 12 |
|
Information about operating pressure
|
max. 12 bar at 40°C |
|
Operating medium
|
Fluid media |
|
Information about operating and control medium
|
Media compatibility to the media contacting materials must be guaranteed |
|
Medium temperature [°C]
|
0 to 90 |
|
ambient temperature [°C]
|
0 to 50 |
|
Nominal temperature [°C]
|
23 |
|
Accuracy flow value
|
±2 %FS for flow <= 50 %FS |
|
Accuracy temperature in ± °C [°C]
|
2 |
|
Repeatability flow value
|
< ±0.5 %FS for flow <= 50 %FS |
|
Temperature coefficient clamp in ± %FS/K
|
type ±0,05%FS/K |
|
Control output
|
2 x PNP or 2 x NPN switchable |
|
Switch function
|
Window comparator |
|
Switching element function
|
Opener/closer switchable |
|
Max. output current [mA]
|
100 |
|
Analogue output
|
0 - 10 V |
|
Flow characteristic curve starting value [l/min]
|
0 |
|
Flow characteristic curve end value [l/min]
|
32 |
|
Max. load resistance current output [Ohm]
|
500 |
|
Min. load resistance voltage output [Kilo-Ohm]
|
15 |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Report
|
IO-Link |
|
IO-Link, report
|
Device V 1.1 |
|
IO-Link, profile
|
Smart sensor profile |
|
IO-Link, function classes
|
Teach channel |
|
IO-Link, communication mode
|
COM2 (38.4 kBaud) |
|
IO-Link, SIO mode support
|
yes |
|
IO-Link, port type
|
A |
|
IO-Link, process data width OUT
|
0 Bytes |
|
IO-Link, process data width IN
|
5 Bytes |
|
IO-Link, process data contents IN
|
1 bit BDC (volume monitoring) |
|
IO-Link, service data unit IN
|
32 bit PDV (volume measurement) |
|
IO-Link, minimum cycle time
|
5 ms |
|
IO-Link, data memory needed [Byte]
|
500 |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M12x1 |
|
Max. line length
|
30 m |
|
installation position
|
arbitrary |
|
Fluid connection
|
female thread G3/4 |
|
Product weight [g]
|
530 |
|
Housing material
|
PA reinforced |
|
From medium contacting materials
|
EPDM (perox.) |
|
Presentable unit(s)
|
US gal |
|
Protection category
|
IP65 |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
Temperature measurement range stating value [°C]
|
0 |
|
Temperature measurement range end value [°C]
|
90 |
|
Temperature characteristic curve starting value [°C]
|
0 |
|
Temperature characteristic curve end value [°C]
|
100 |
|
Weight
|
530 g / Pcs |
|
Customs duty number
|
85369095 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SFAW (english) , Data sheet |
