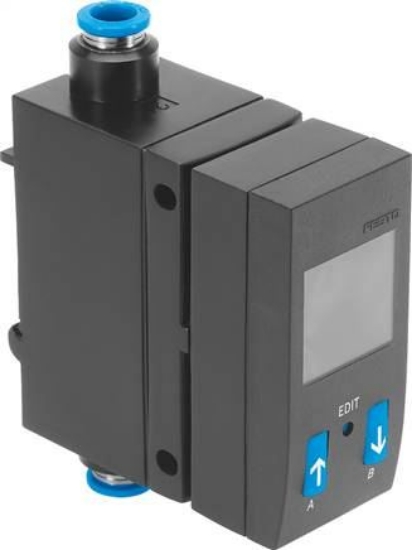

SFAB-200U-WQ8-2SV-M12 (565396) سنسور جریان فستو

کد سفارش تولید کننده: 565396
مشخصات
عنوان ویژگی مقدار ویژگی
Permission RCM mark
CE certificate (see declaration of conformity) acc. to EU-EMV Directive
Certified awarding point UL E322346
Material information RoHs compliant
Measured parameter flow
Flow direction P1 -> P2
Measurement principle Thermic
Flow measurement range starting value [l/min] 2,0
Flow measurement range end value [l/min] 200
Operating pressure [bar] 0 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Medium temperature [°C] 0 to 50
ambient temperature [°C] 0 to 50
Nominal temperature [°C] 23
Accuracy flow value ± (3% o.m.v. + 0,3% FS)
Repeatability null point in ± %FS [] 0,2
Repeatability clamp in ± %FS [] 0,8
Control output 2 x PNP or 2 x NPN switchable
Switch function Window comparator
Switching element function NC contact
Max. output current [mA] <= 100 mA
Analogue output 0 - 10 V
Flow characteristic curve starting value [l/min] 0
Flow characteristic curve end value [l/min] 200
Output characteristic curve starting value [mA] 0
Output characteristic curve end value [mA] 10
Short circuit resistance yes
Operating voltage range DC [V] 15 to 30
Reverse polarity protection for all electrical connections
electrical connection: M12x1
Plug assignment to standard EN 60947-5-2
Fastening type With throughway bores
installation position arbitrary
Pneumatic connection QS-8
Product weight [g] 600
Housing material PA reinforced
Display type Illuminating LCD blue
Presentable unit(s) l
Protection category IP65
Pressure drop [mbar] < 100 mbar
Corrosion resistant class KBK 2 - moderate corrosion stress
Min. load resistance voltage output [Kilo-Ohm] 10
Weight 600 g / Pcs
GTIN 4052568212469
Customs duty number 90262020
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: SFAB (english) Data sheet
