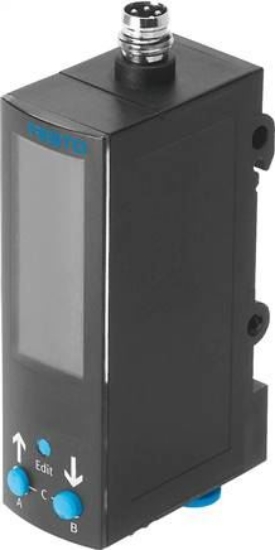

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measured parameter
|
Differential pressure |
|
Measurement process
|
Piezoresistive pressure sensor with display |
|
Pressure measurement range starting value [bar]
|
0 |
|
Pressure measurement range end value [bar]
|
-1 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Accuracy FS []
|
2 |
|
Control output
|
2xNPN |
|
Switch function
|
Freely programmable |
|
Switching element function
|
Switchable |
|
Reproducibility switching value [%]
|
0,3 |
|
Max. output current [mA]
|
100 |
|
Short circuit resistance
|
Cycling |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M8x1 |
|
Fastening type
|
With throughway bores |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
QS-4 |
|
Product weight [g]
|
37 |
|
Housing material
|
PC |
|
Display type
|
Illuminating LCD |
|
Switching status indicator
|
LCD yellow |
|
Setting options
|
Teach-in |
|
Tamper-proof fuse
|
PIN code |
|
Settings range threshold value [%]
|
0 to 100 |
|
Settings range hysteresis [%]
|
0 to 90 |
|
Protection category
|
IP65 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
37 g / Pcs |
|
GTIN
|
4052568178635 |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SDE3 (english) , Data sheet |
