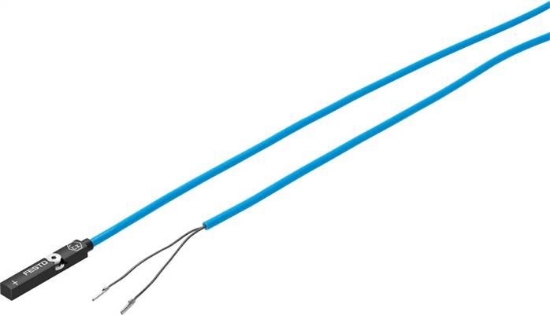

Design
|
For T-slot |
|
Based on standard
|
EN 60947-5-6 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Special features
|
Oil resistant |
|
Material information
|
halogen free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Magnetoresistive |
|
ambient temperature [°C]
|
-40 to 85 |
|
Repeatability [mm]
|
0,2 |
|
Control output
|
NAMUR |
|
Switching element function
|
NAMUR |
|
Switch on time [ms]
|
< 1 ms |
|
Switch off time [ms]
|
< 1 ms |
|
Max. switching frequency [hz]
|
330 |
|
Residual current [mA]
|
0.4 to 1 |
|
Rated operating voltage DC [V]
|
8,2 |
|
Operating voltage range DC [V]
|
7.5 to 18 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
cable |
|
Electrical connection 1, connection technology
|
Open end |
|
Electrical connection 1, number of pins / wires
|
2 |
|
Connection outlet direction
|
along |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable length [MTR]
|
5,0 |
|
Line properties
|
Robot friendly |
|
Cable shield colour
|
#009FE3 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Insulation sleeve material
|
PP |
|
Fastening type
|
Insertable from above into the slot |
|
Max. tightening torque [Nm]
|
0,6 |
|
installation position
|
arbitrary |
|
Product weight [g]
|
53,0 |
|
Housing colour
|
#000000 |
|
Housing material
|
High-alloyed stainless steels |
|
Switching status indicator
|
LED yellow |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 85 |
|
Protection category
|
IP65 |
|
Wire ends
|
Wire end sleeve |
|
ATEX gas category
|
II 1G |
|
Ex ignition protection type gas
|
Ex ia IIC T4...T6 Ga |
|
ATEX dust category
|
II 1D |
|
Ex ignition protection type dust
|
Ex ia IIIC T135°C Da |
|
Ex protection approval outside of the EU
|
EPL Da (BR) |
|
Ex ambient temperature
|
T4: -20°C <= Ta <= +85°C |
|
Max. input voltage [V]
|
28 |
|
Max. input current [A]
|
0,25 |
|
Max. input power
|
T4: 350 mW |
|
Effective inductivity
|
30 µH |
|
Effective capacity
|
79 nF |
|
Certified awarding point
|
DNV 17.0027 X |
|
residual ripple
|
10 % |
|
Weight
|
53,0 g / Pcs |
|
GTIN
|
4052568262952 |
|
Customs duty number
|
85365019 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-8 (english) , Data sheet |
