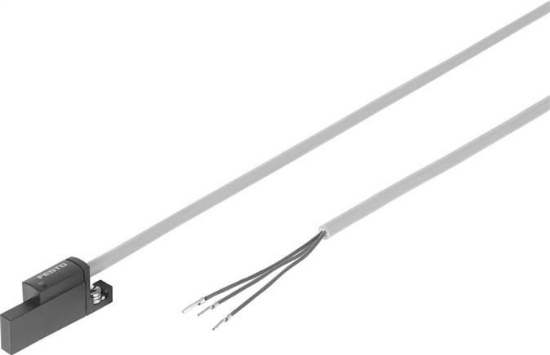

Design
|
For T-slot |
|
Based on standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Special features
|
Oil resistant |
|
Material information
|
Copper and PTFE-free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Magnetoresistive |
|
ambient temperature [°C]
|
-25 to 85 |
|
Max. movement speed [m/s]
|
1 |
|
Repeatability [mm]
|
0,2 |
|
Control output
|
PNP |
|
Switching behaviour during welding
|
Output signal freezes |
|
Switching element function
|
NO contact |
|
Switch on time [ms]
|
<= 15 ms |
|
Switch off time [ms]
|
<= 25 ms |
|
Max. switching frequency [hz]
|
25 |
|
Max. output current [mA]
|
100 |
|
Max. output current in fastening sets [mA]
|
100 |
|
Max. switching capacity DC [W]
|
2,8 |
|
Max. switching capacity DC in fastening sets [W]
|
2,8 |
|
Voltage drop [V]
|
< 1,5 V |
|
Minimum load current [mA]
|
0 |
|
Residual current [mA]
|
< 0,005 mA |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Rated operating voltage DC [V]
|
24,0 |
|
Operating voltage range DC [V]
|
10 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
cable |
|
Electrical connection 1, connection technology
|
Open end |
|
Electrical connection 1, number of pins / wires
|
3 |
|
Connection outlet direction
|
along |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable length [MTR]
|
5,0 |
|
Line properties
|
resistant to welding spatter |
|
Cable shield colour
|
#C6C6C6 |
|
Cable sleeve material
|
PVC |
|
Insulation sleeve material
|
PVC |
|
Fastening type
|
Insertable from above into the slot |
|
Max. tightening torque [Nm]
|
0,6 |
|
installation position
|
arbitrary |
|
Product weight [g]
|
119,4 |
|
Housing colour
|
#000000 |
|
Housing material
|
High-alloyed stainless steels |
|
Switching status indicator
|
LED yellow |
|
Functional reserve display
|
LED orange |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 80 |
|
Protection category
|
IP65 |
|
Noise immunity to magnetic fields
|
Insensitive to AC magnetic fields (50...60 Hz) < 200 mT |
|
Wire ends
|
Wire end sleeve |
|
Weight
|
119,4 g / Pcs |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-8 (english) , Data sheet |
