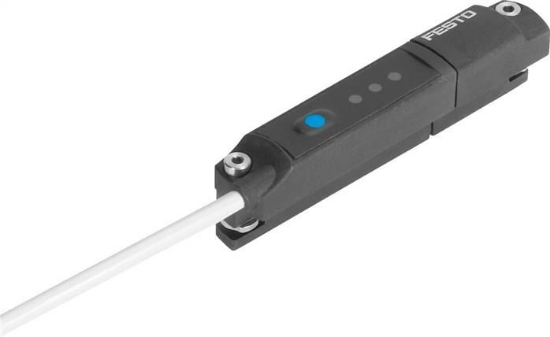

SDAT-MHS-M50-1L-SA-E-0.3-M8 (1531265) ترانسمیتر پوزیشن فستو

کد سفارش تولید کننده: 1531265
مشخصات
عنوان ویژگی مقدار ویژگی
Design For T-slot
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directive
KC-mark KC-EMV
Material information halogen free
Measured parameter Position
Measurement principle Hall magnetic
Recording range [Mikrometer] 0 to 50000
ambient temperature [°C] -25 to 70
Sampling interval type [ms] 1
Max. movement speed [m/s] 3
Resolution travel [mm] 0,05
Repeatability [mm] 0,1
Control output PNP
Switching element function Opener/closer switchable
Switch on time [ms] < 2 ms
Switch off time [ms] < 2 ms
Max. switching frequency [hz] 1.000
Max. output current [mA] 100
Max. switching capacity DC [W] 2,7
Voltage drop [V] 2,5
Analogue output 4 - 20 mA
Sensitivity current output [Milliamper] 0,320
Linearity error typical in ± mm ±0.25 mm
Max. load resistance current output [Ohm] 500
Short circuit resistance yes
Overload resistant Available
Report I-port
IO-Link, report Device V 1.1
IO-Link, profile Smart sensor profile
IO-Link, function classes Teach channel
IO-Link, communication mode COM3 (230.4 kBaud)
IO-Link, SIO mode support yes
IO-Link, port type A
IO-Link, process data width IN 2 Bytes
IO-Link, process data contents IN 12 bit PDV (position measurement)
IO-Link, minimum cycle time 1 ms
Operating voltage range DC [V] 15 to 30
residual ripple 10 %
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Cable with plug
Electrical connection 1, connection technology M8x1, A coded to EN 61076-2-104
Electrical connection 1, number of pins / wires 4
Electrical connection 1, fastening type Screw lock
Connection outlet direction along
Plug contacts material Copper allow
Test conditions line Bending radius strength to Festo standard
Cable length [MTR] 0,3
Line properties Cable track+robot
Cable shield colour #C6C6C6
Cable sleeve material TPE-U(PUR)
Fastening type Insertable from above into the slot
installation position arbitrary
Product weight [g] 19
Housing material High-alloyed stainless steels
Locking nut material Nickel-plated brass
Foil material Polyester
Operation-readiness display LED green
Switching status indicator LED yellow
Status display LED red
Setting options IO-Link
Ambient temperature for moving cable placements [°C] -20 to 70
Protection category IP65
Weight 19 g / Pcs
GTIN 4052568238070
Customs duty number 90318020
Manufacturer Festo
Document Group data sheet: SDAT-MHS (english) Data sheet
