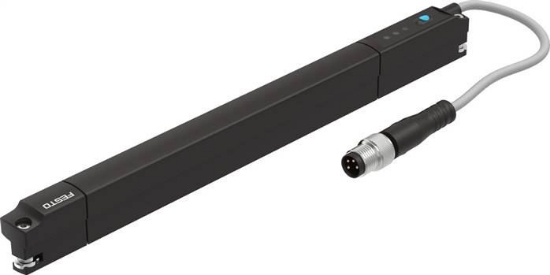

Design
|
For T-slot |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
halogen free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Hall magnetic |
|
Recording range [Mikrometer]
|
0 to 160000 |
|
ambient temperature [°C]
|
-25 to 70 |
|
Sampling interval type [ms]
|
1 |
|
Max. movement speed [m/s]
|
3 |
|
Resolution travel [mm]
|
0,05 |
|
Analogue output
|
4 - 20 mA |
|
Sensitivity current output [Milliamper]
|
0,10 |
|
Linearity error typical in ± mm
|
±0.25 mm |
|
Max. load resistance current output [Ohm]
|
500 |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Operating voltage range DC [V]
|
15 to 30 |
|
residual ripple
|
10 % |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Cable with plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Connection outlet direction
|
along |
|
Plug contacts material
|
Copper allow |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable length [MTR]
|
0,3 |
|
Line properties
|
Cable track+robot |
|
Cable shield colour
|
#C6C6C6 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Fastening type
|
Insertable from above into the slot |
|
installation position
|
arbitrary |
|
Product weight [g]
|
35 |
|
Housing material
|
High-alloyed stainless steels |
|
Locking nut material
|
Nickel-plated brass |
|
Foil material
|
Polyester |
|
Operation-readiness display
|
LED green |
|
Status display
|
LED red |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
Weight
|
35 g / Pcs |
|
Customs duty number
|
90318020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VTEM (english) , Data sheet |
