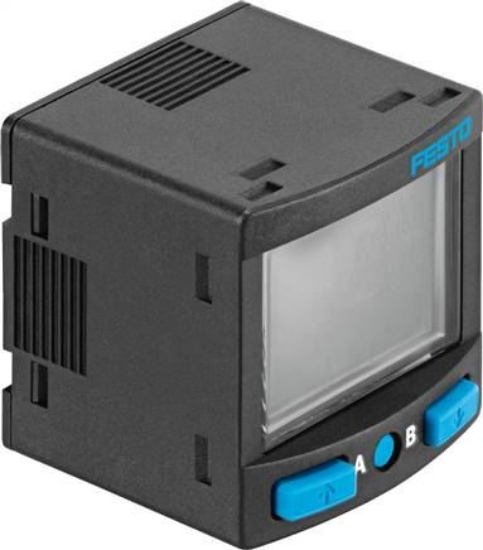

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
KC-mark
|
KC-EMV |
|
Certified awarding point
|
UL E322346 |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
Current |
|
Signal range
|
0 - 20 mA |
|
ambient temperature [°C]
|
0 to 50 |
|
Sampling interval type [ms]
|
1 |
|
Accuracy FS []
|
0,5 |
|
Repeatability in ± %FS []
|
0,2 |
|
Control output
|
2 x PNP or 2 x NPN switchable |
|
Switch function
|
Freely programmable |
|
Switching element function
|
Opener/closer switchable |
|
Max. output current [mA]
|
100 |
|
Short circuit resistance
|
yes |
|
Report
|
IO-Link |
|
IO-Link, report
|
Device V 1.1 |
|
IO-Link, profile
|
Smart sensor profile |
|
IO-Link, function classes
|
Teach channel |
|
IO-Link, communication mode
|
COM2 (38.4 kBaud) |
|
IO-Link, SIO mode support
|
yes |
|
IO-Link, port type
|
A |
|
IO-Link, process data width OUT
|
0 Bytes |
|
IO-Link, process data width IN
|
5 Bytes |
|
IO-Link, process data contents IN
|
14 bit PDV (measurement InA) |
|
IO-Link, minimum cycle time
|
5 ms |
|
IO-Link, data memory needed [Byte]
|
500 |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, connection technology
|
Wiring diagram L1J |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 2, connection type
|
2x socket |
|
Electrical connection 2, connection technology
|
Wiring diagram EC |
|
Electrical connection 2, number of pins / wires
|
4 |
|
Fastening type
|
Front panel integration |
|
Product weight [g]
|
23 |
|
Housing material
|
PA reinforced |
|
Display type
|
Illuminating LCD Multiple |
|
Setting options
|
IO-Link |
|
Tamper-proof fuse
|
IO-Link |
|
Protection category
|
IP40 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
23 g / Pcs |
|
GTIN
|
4052568284961 |
|
Customs duty number
|
85437090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SCDN (english) , Data sheet |
