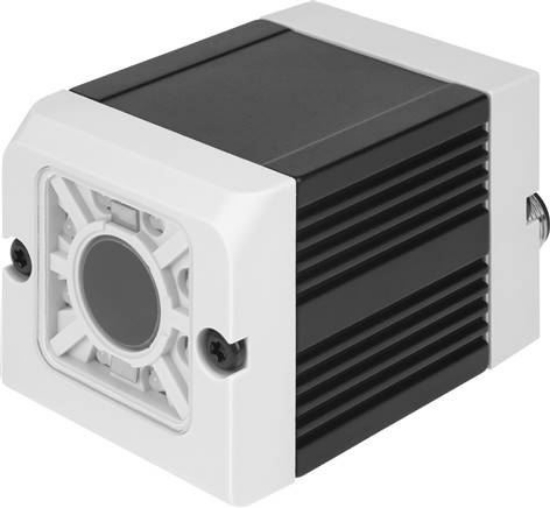

Vision sensor design
|
Object sensor |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Permission
|
RCM mark |
|
Burning width [mm]
|
12 |
|
Sight field
|
min. 16 mm x 13 mm |
|
Focus setting
|
with Alignment screw |
|
Objective fastening
|
Integrated optics |
|
Illumination type
|
integrated |
|
Light type
|
LED |
|
Sensor type
|
Monochrome |
|
Sensor resolution
|
1280 x 1024 pixels (SXGA) |
|
Image rate (full image) [fps]
|
40 |
|
Max. number of test programs / jobs
|
255 |
|
Max. number of test criteria / detectors
|
255 |
|
Detector /properties function
|
BLOB |
|
Typical cycle time
|
BLOB: 30 ms |
|
Details for Ethernet, connection technology
|
M12 |
|
Ethernet, data transfer speed
|
100 Mbit/s |
|
Ethernet supported protocols
|
Ethernet / IP |
|
Serial interface, connection technology
|
M12 |
|
Serial interface, type
|
RS 232 / RS 422 |
|
electrical connection:
|
M12 |
|
Quantity digital inputs
|
2 |
|
Quantity digital outputs
|
2 |
|
Number of selectable digital inputs / outputs
|
4 |
|
Control input
|
PNP/NPN switchable |
|
Switch level
|
Signal 0: <= 3 V |
|
Control output
|
PNP/NPN switchable |
|
Max. output current [mA]
|
50 |
|
Short circuit resistance
|
for all electrical connections |
|
Nominal operating voltage DC [V]
|
24 |
|
Permitted voltage oscillations
|
-25 % / +10 % |
|
Max. power input [mA]
|
550 |
|
Power input for unloaded outputs [mA]
|
200 |
|
ambient temperature [°C]
|
0 to 50 |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Protection category
|
IP67 |
|
Dimensions W x L x H
|
45 mm x 45 mm x 76.7 mm |
|
Product weight [g]
|
160 |
|
Housing material
|
Aluminium wrought alloy, anodised |
|
Cover material
|
ABD reinforced |
|
Material information
|
RoHs compliant |
|
Oscillation strength
|
according to EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Information about protection category
|
With Protection tube |
|
Weight
|
160 g / Pcs |
|
GTIN
|
4052568289096 |
|
Customs duty number
|
90314990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SBSI (english) , Data sheet |
