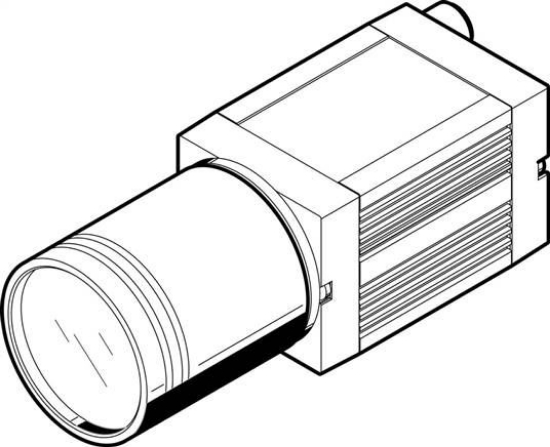

Sensor resolution
|
752 x 480 pixels (wide VGA) |
|
Objective fastening
|
CS-mount (C-mount with objective protection tube) |
|
Sight field
|
Depending on the selected objective |
|
Width [mm]
|
45 |
|
Height [mm]
|
45 |
|
Length [mm]
|
139,0 |
|
Inputs
|
Input 1: Trigger signal, input 2: Accept inputs |
|
Max. number of different orientations
|
8 per part type |
|
Max. number of test programs
|
256 |
|
Outputs:
|
Output 1: Operation-ready, outputs 2 and 3 can be parameterised: Good parts, bad parts, properly oriented, improperly oriented, external illumination |
|
Max. cumulative current
|
1.5 A at the 24 V outputs |
|
Nominal operating voltage DC [V]
|
24 |
|
Power input for unloaded outputs [mA]
|
120 |
|
Permitted voltage oscillations
|
± 10 % |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Protection category
|
IP65 |
|
Ambient conditions
|
Cleanest possible ambient air |
|
ambient temperature [°C]
|
-10 to 50 |
|
Permission
|
C-tick |
|
Product weight [g]
|
172 |
|
Illumination time [Mikrosekun]
|
18 to 200000 |
|
Image rate (full image) [fps]
|
60 |
|
Sensor type
|
Monochrome |
|
Working distance [mm]
|
Depending on the selected objective |
|
Ethernet, data transfer speed
|
100 Mbit/s |
|
Ethernet supported protocols
|
TCP/IP,EasyIP,Telnet,ModbusTCP |
|
Ethernet, connection plug
|
M12 |
|
Ethernet, bus interface
|
IEEE802.3U (100BaseT) |
|
Material information
|
Copper and PTFE-free |
|
Cover material
|
ABS |
|
Housing material
|
aluminium |
|
Weight
|
172 g / Pcs |
|
GTIN
|
4052568200152 |
|
Customs duty number
|
85258030 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SBOX-Q (english) , Data sheet |
