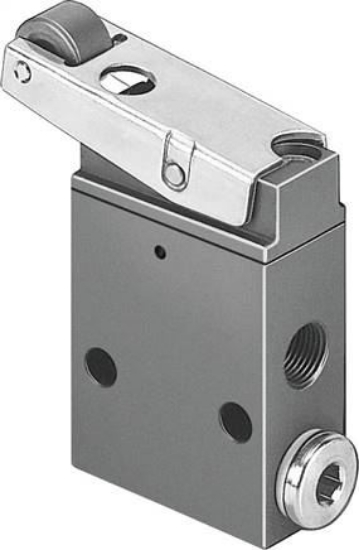

Valve function
|
3/2 closed monostable |
|
Actuation type
|
Mechanical |
|
Normal nominal flow [l/min]
|
151 |
|
Operating pressure [bar]
|
3.5 to 8 |
|
Construction set up
|
Plate seat |
|
Reset mode
|
Mechanical spring |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Control type
|
pilot operated |
|
Flow direction
|
Not reversible |
|
Information about force dynamic sampling
|
Switching frequency at least 1/year |
|
Operating medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
actuating force [N]
|
1,73 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
G1/8 |
|
Pneumatic connection 2
|
G1/8 |
|
Pneumatic connection 3
|
G1/8 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
aluminium |
|
Nominal width [mm]
|
3,5 |
|
Exhaust function
|
Can be throttled |
|
Control air supply
|
Internal |
|
control medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Product weight [g]
|
104 |
|
Weight
|
104 g / Pcs |
|
GTIN
|
4052568000189 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valves, mechanically actuated (english) , Data sheet |
