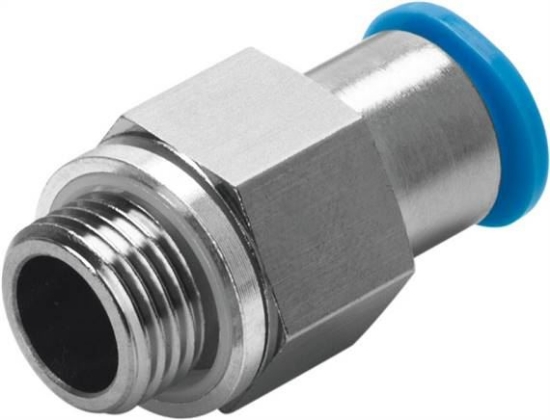

size
|
Standard |
|
Nominal width [mm]
|
4,3 |
|
Permitted hose type
|
PUN-CM- |
|
Hose plug-in depth [mm]
|
18,3 |
|
installation position
|
arbitrary |
|
Packing size
|
1 |
|
Construction set up
|
Push-pull principle |
|
Operating pressure complete temperature range [bar]
|
-0.95 to 6 |
|
Temperature depending operating pressure [bar]
|
-0.95 to 14 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 80 |
|
Maritime classification
|
see Certificate |
|
Product weight [g]
|
30,0 |
|
Pneumatic connection 1
|
Male thread G1/4 |
|
Pneumatic connection 2
|
For hose exterior diameter 8 mm |
|
Sleeve colour
|
#009FE3 |
|
Material information
|
RoHs compliant |
|
Housing material
|
brass |
|
Sleeve material
|
POM |
|
Tube seal, hose seal material
|
NBR |
|
Hose clamping segment material
|
High-alloyed stainless steels |
|
Seal type on stud
|
gasket |
|
Max. tightening torque [Nm]
|
15,0 |
|
Nominal tightening torque [Nm]
|
9,00 |
|
Tolerance to nominal tightening torque
|
± 20 % |
|
Weight
|
30,0 g / Pcs |
|
GTIN
|
4052568040840 |
|
Customs duty number
|
74122000 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Self-closing/rotary push-in fittings QS (english) , Data sheet |
