Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|

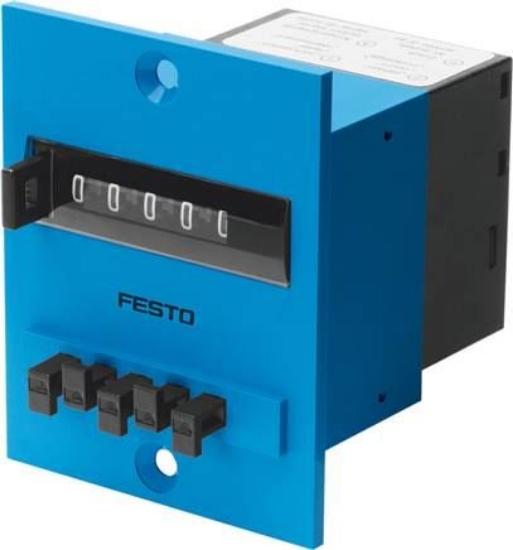

Construction set up
|
Mechanical sequence counter with pneumatic actuator |
|
Reset mode
|
Manual button or pneumatic signal |
|
Display
|
5 digits |
|
Actuator pressure drop
|
0,2 ± 0,1 bar |
|
Reset pressure drop
|
0,15 ± 0,1 bar |
|
Reaction pressure actuator
|
0,6 ± 0,2 bar |
|
Operating pressure [bar]
|
2 to 8 |
|
Min. switch reset pressure [bar]
|
2 |
|
Min. impulse duration actuator [ms]
|
10 |
|
Min. impulse duration reset [ms]
|
180 |
|
Min. pause duration actuator [ms]
|
15 |
|
Min. pause duration reset [ms]
|
50 |
|
ambient temperature [°C]
|
0 to 60 |
|
Product weight [g]
|
150 |
|
Fastening type
|
Front panel integration |
|
Pneumatic connection
|
M5 |
|
Weight
|
150 g / Pcs |
|
GTIN
|
4052568112783 |
|
Customs duty number
|
90291000 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: M5 Compact System (english) , Data sheet |
