size
|
186 |
|
Nominal width DN
|
45 |
|
Model series
|
L |
|
installation position
|
vertical |
|
Actuation type
|
Electrical |
|
Construction set up
|

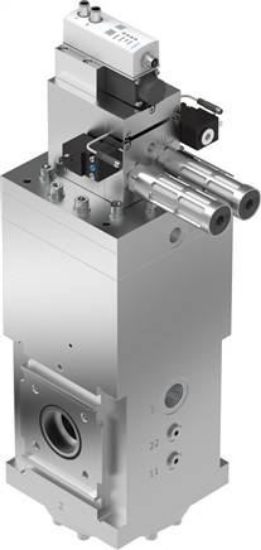

Electrically adjustable pressure regulator valve |
|
Controller function
|
Output pressure constant |
|
Operating pressure [bar]
|
0 to 50 |
|
Pressure regulation range [bar]
|
0.4 to 40 |
|
Nominal operating voltage DC [V]
|
24 |
|
Signal range analogue output
|
0 - 10 V |
|
Signal range analogue input
|
0 - 10 V |
|
TARGET / ACTUAL value
|
Voltage type 0 - 10 V |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Food compatibility
|
See expanded material information |
|
Medium temperature [°C]
|
5 to 50 |
|
ambient temperature [°C]
|
5 to 50 |
|
Permission
|
SE type test certification |
|
Electrical connection IN
|
plug, M12, 5 pin, A-coded |
|
Electrical connection: OUT
|
plug, M12, 5 pin, A-coded |
|
Fastening type
|
At the maintenance unit |
|
Pneumatic connection 1
|
G1 |
|
Pneumatic connection 11
|
G1/4 |
|
Pneumatic connection 2
|
G1 |
|
Pneumatic connection 22
|
G1/4 |
|
Pneumatic connection 3
|
G1 |
|
Pneumatic connection 82
|
G1/2 |
|
Material information
|
LABS containing materials included |
|
Cover down material
|
aluminium |
|
Spring material
|
spring steel |
|
Housing material
|
aluminium |
|
Safety function
|
Venting of the control chamber |
|
Performance Level (PL)
|
Venting of the control chamber / category 3 performance level d |
|
Max. pressure hysteresis [bar]
|
0,1 |
|
CE certificate (see declaration of conformity)
|
to EU pressure vessel directive |
|
Weight
|
0 g / Pcs |
|
Customs duty number
|
84811099 |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
