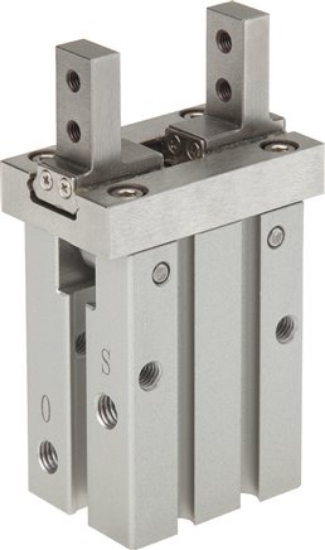

Materials:
Body: Aluminium anodised / galvanised steel / stainless steel, pistons: Aluminium / stainless steel with magnet insertion, gripper fingers and ball guide: Hardened stainless steel, seals: NBR / PUR
Temperature range:
-10°C to +60°C
Operating pressure:
1.5 - 7 bar (single action: 3 - 7 bar)
Maximum working frequency:
180 cycles / minute
Version:
With Magnetic piston
Cylinder switch type:
F or D (cylinder switch type D not for Ø 10)
Advantages:
•ideal for Pick and Place applications,
•high repeatability (± 0.01 mm),
•guidance through stable ball guide,
•precise reinstallation due to front centring bore and tolerance bore,
•many mounting variants possible,
•main mounting dimensions identical to SMC series MHZ2
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Version
|
single acting - opened unpressurised (grips outside) |
|
Piston Ø [mm]
|
10 |
|
Eff. holding force* grips outside [N]
|
7 |
|
Repair sets
|
SHZ 10 REP |
|
A [mm]
|
23,0 |
|
B [mm]
|
37,6 |
|
C [mm]
|
6,0 |
|
D [mm]
|
12,3 |
|
E [mm]
|
57,0 |
|
F [mm]
|
29 |
|
G (+0 / -0,05) [mm]
|
4 |
|
H [mm]
|
23,0 |
|
I [mm]
|
16 |
|
J [mm]
|
18 |
|
K [mm]
|
12 |
|
L [mm]
|
16,4 |
|
M (+0.05 / -0) [mm]
|
11 (2.0 deep) |
|
O [mm]
|
7,0 |
|
P [mm]
|
18,8 |
|
Q [mm]
|
10,0 |
|
K1 [mm]
|
7,6 |
|
K2 [mm]
|
5,2 |
|
K3 (+0.05 / -0) [mm]
|
2 (3 deep) |
|
R [mm]
|
11,4 |
|
S [mm]
|
27,0 |
|
U
|
M 2.5 |
|
V (+0 / -0.05) [mm]
|
5 |
|
W [mm]
|
3 |
|
X [mm]
|
5,7 |
|
Y
|
M 3 |
|
Y1 [mm]
|
6,0 |
|
Y2 [mm]
|
6,0 |
|
Y3 [mm]
|
6 |
|
Y4 [mm]
|
2,6 |
|
Z
|
M 3 |
|
OP (+2 / -0) [mm]
|
14,8 |
|
CL (+0 / -0,7) [mm]
|
11,4 |
|
Operating pressure [bar]
|
3 - 7 |
|
Weight
|
65 g / Pcs |
|
GTIN
|
4050571871628 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9, Data sheet |
