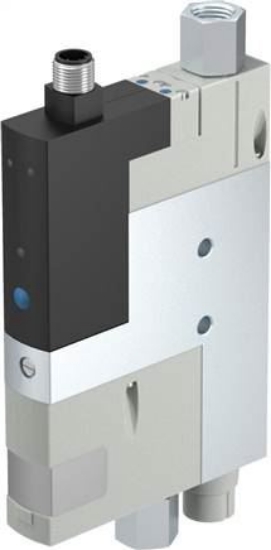

Nominal width laval nozzle [mm]
|
0,70 |
|
Pitch dimension [mm]
|
20 |
|
Construction type silencer type
|
open |
|
installation position
|
arbitrary |
|
Ejector characteristic
|
High vacuum |
|
Filter porosity [Mikrometer]
|
40 |
|
Hand assist actuation
|
tentative |
|
Integrated function
|
check valves |
|
Construction set up
|
Modular |
|
Short circuit resistance
|
yes |
|
Measured parameter
|
Relative pressure |
|
Measurement principle
|
Piezoresistive |
|
Switching element function
|
NO contact |
|
Switch function
|
Threshold comparator |
|
Valve function
|
closed |
|
Reverse polarity protection
|
for all electrical connections |
|
Control input to standard
|
IEC 61131-2 |
|
Display type
|
LED |
|
Settings range threshold value [bar]
|
-1 |
|
Setting options
|
Teach-in |
|
Switching position display
|
LED |
|
Switching status indicator
|
Visual |
|
Operating pressure [bar]
|
2 to 8 |
|
Operating pressure for max. vacuum [bar]
|
4,1 |
|
max. vacuum [%]
|
93 |
|
Nominal operating pressure [bar]
|
6 |
|
Max. suction volume current against atmosphere [l/min]
|
16,0 |
|
Venting time for nominal operating pressure [s]
|
0,4 |
|
Operating voltage range DC [V]
|
20.4 to 27.6 |
|
Power-on time
|
100% |
|
Inductive protection circuit
|
adjusted to MZ, MY, ME coils |
|
Insulation voltage [V]
|
50 |
|
Empty run current [mA]
|
< 80 mA |
|
Max. output current [mA]
|
100 |
|
Residual current [mA]
|
0,1 |
|
Control output
|
PNP |
|
Voltage drop [V]
|
<= 1,5 V |
|
Coil characteristic value
|
24 V DC: Low current phase 0.3 W, high current phase 2,55 W |
|
Surge voltage strength [kV]
|
0,8 |
|
Overload resistant
|
Available |
|
Degree of contamination
|
3 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
0 to 50 |
|
Relative humidity
|
5 - 85 % |
|
Noise level for nominal operating pressure [Dezibel (?]
|
58 |
|
Protection category
|
IP65 |
|
Protection class
|
III |
|
ambient temperature [°C]
|
0 to 50 |
|
Permission
|
RCM mark |
|
Max. tightening torque
|
0.8 Nm with female thread |
|
Product weight [g]
|
325 |
|
Pressure measurement range [bar]
|
-1 |
|
Accuracy FS []
|
0,5 |
|
Reproducibility shifting time FS [%]
|
0,6 |
|
Switching logic inputs
|
PNP (Positive switching) |
|
electrical connection:
|
M12x1 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 3
|
Silencer integrated |
|
vacuum connection
|
G1/4 |
|
Material information
|
LABS containing materials included |
|
Seals material
|
NBR |
|
Capture nozzle material
|
POM |
|
Filter material
|
PA |
|
Filter housing material
|
PA reinforced |
|
Housing material
|
Aluminium die casting |
|
Regulation screw material
|
Steel |
|
Silencer material
|
Aluminium wrought alloy |
|
Screws material
|
Steel |
|
Plug housing material
|
brass, nickel-plated |
|
Plug contacts material
|
brass, Gold plated |
|
Pins material
|
Steel |
|
Jet nozzle material
|
Aluminium wrought alloy |
|
Button field material
|
PA reinforced |
|
Screw connection material
|
Aluminium wrought alloy, anodised |
|
Hysteresis [bar]
|
0,02 |
|
Weight
|
325 g / Pcs |
|
GTIN
|
4052568178284 |
|
Customs duty number
|
84141089 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: OVEM (english) , Data sheet |
