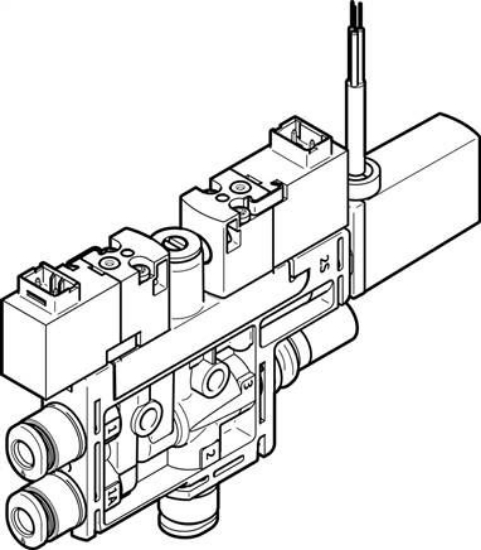

Nominal width laval nozzle [mm]
|
0,45 |
|
Pitch dimension [mm]
|
10 |
|
Construction type silencer type
|
open |
|
installation position
|
arbitrary |
|
Ejector characteristic
|
High vacuum |
|
Filter porosity [Mikrometer]
|
40 |
|
Hand assist actuation
|
tentative |
|
Integrated function
|
Silencer open |
|
Construction set up
|
T-shape |
|
Valve function
|
closed |
|
Measurement process
|
Piezoresistive pressure sensor with display |
|
Operating pressure for max. suction volume flow [bar]
|
3 |
|
Operating pressure [bar]
|
2 to 7 |
|
Operating pressure for max. vacuum [bar]
|
4,2 |
|
max. vacuum [%]
|
89 |
|
Nominal operating pressure [bar]
|
4 |
|
Max. suction volume current against atmosphere [l/min]
|
4 |
|
Venting time for nominal operating pressure [s]
|
2,0 |
|
Operating voltage range DC [V]
|
21.6 to 26.4 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
24 V DC: 1 W |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
0 to 50 |
|
Noise level for nominal operating pressure [Dezibel (?]
|
64 |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 50 |
|
Product weight [g]
|
75 |
|
Operating voltage range DC sensor [V]
|
18 to 30 |
|
Pressure measurement range [bar]
|
-1 |
|
Electrical connection: input, function
|
Eject impulse |
|
Electrical connection: input, connection type
|
2x plug |
|
Electrical connection: input, connection technology
|
Wiring diagram H |
|
Electrical connection: input, number of pins / wires
|
2 |
|
Electrical connection: inlet, fastening type
|
Ratcheting lock |
|
Electrical connection: outlet, function
|
sensor |
|
Electrical connection: outlet, connection type
|
cable |
|
Electrical connection: outlet, connection technology
|
Open end |
|
Electrical connection: outlet, number of pins / wires
|
3 |
|
Line properties
|
Cable track capable |
|
Cable diameter [mm]
|
2,9 |
|
Tolerance cable diameter
|
± 0,1 mm |
|
Cable length [MTR]
|
2,5 |
|
Conductor - nominal cross-section [mm²]
|
0,14 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
For hose exterior diameter 4 mm |
|
Pneumatic connection 3
|
Silencer open |
|
vacuum connection
|
For hose exterior diameter 4 mm |
|
Cable shield colour
|
#C6C6C6 |
|
Connection thread material
|
POM |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Capture nozzle material
|
POM |
|
Filter material
|
POM |
|
Housing material
|
PA reinforced |
|
Cable sleeve material
|
PVC |
|
Regulation screw material
|
Steel |
|
Silencer material
|
PE |
|
Screws material
|
Steel |
|
Jet nozzle material
|
Aluminium wrought alloy |
|
Switching element function
|
NC contact |
|
Switch function
|
Freely programmable |
|
Display type
|
LED display |
|
Setting options
|
IO-Link |
|
Control output
|
PNP/NPN switchable |
|
Weight
|
75 g / Pcs |
|
GTIN
|
4052568297862 |
|
Customs duty number
|
84141089 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: OVEL (english) , Data sheet |
