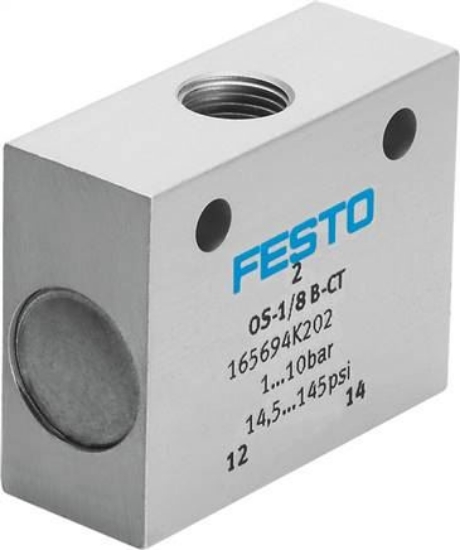

Valve function
|
OR function |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Fastening type
|
With throughway bores |
|
Normal nominal flow [l/min]
|
1.170 |
|
Operating pressure [bar]
|
1 to 10 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Nominal width [mm]
|
6,5 |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Medium temperature [°C]
|
-10 to 60 |
|
Pneumatic connection 3
|
G1/4 |
|
Material information
|
RoHs compliant |
|
Housing material
|
Aluminium wrought alloy |
|
installation position
|
arbitrary |
|
Product weight [g]
|
110 |
|
Seals material
|
NBR |
|
Weight
|
110 g / Pcs |
|
GTIN
|
4052568001308 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: M5 Compact System (english) , Data sheet |
