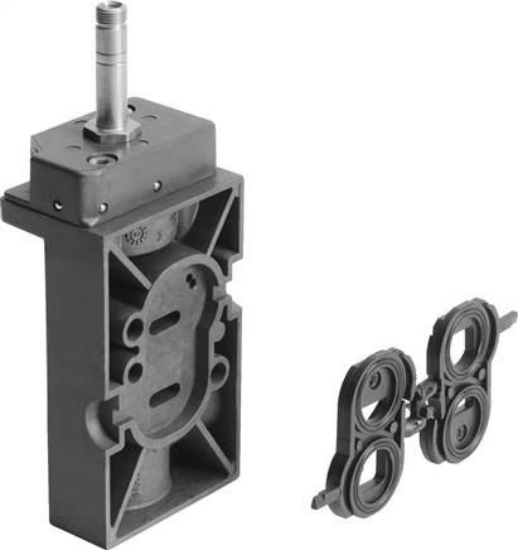

Valve function
|
5/2 or 3/2 mono-stable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
53 |
|
Normal nominal flow [l/min]
|
900 |
|
Operating pressure [bar]
|
2 to 10 |
|
Construction set up
|
Plate seat |
|
Reset mode
|
Mechanical spring |
|
Nominal width [mm]
|
7 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
VDI/VDE 3845 (NAMUR) |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
pilot operated |
|
Flow direction
|
Not reversible |
|
Coverage
|
negative Überdeckung |
|
b-value
|
0.33 |
|
C-value []
|
4,2 |
|
Shifting time off [ms]
|
100 |
|
Shifting time on [ms]
|
50 |
|
ATEX gas category
|
II 2G |
|
Ex ignition protection type gas
|
c T6 |
|
ATEX dust category
|
II 2D |
|
Ex ignition protection type dust
|
c T70°C |
|
Ex ambient temperature
|
-5°C <= Ta <= +40°C |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Medium temperature [°C]
|
-5 to 40 |
|
ambient temperature [°C]
|
-5 to 40 |
|
Product weight [g]
|
280 |
|
Fastening type
|
on terminal strip |
|
Breathing opening connection
|
Internal |
|
Exhaust control connection 84
|
M5 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
NAMUR wiring diagram |
|
Pneumatic connection 3
|
G1/4 |
|
Pneumatic connection 4
|
NAMUR wiring diagram |
|
Pneumatic connection 5
|
G1/4 |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Weight
|
280 g / Pcs |
|
GTIN
|
4052568170370 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Solenoid valves, to NAMUR (english) , Data sheet , Group data sheet: Solenoid, Namur |
