Based on standard
|
EN 61076-2-101 |
|
Construction set up
|

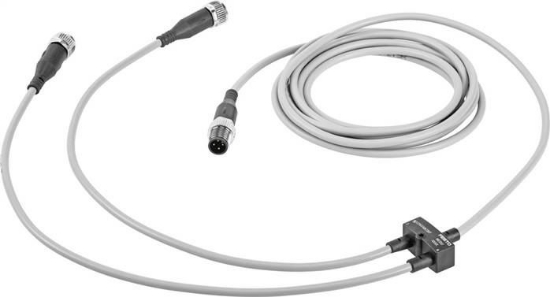

Y-distributor with cable both sides |
|
Distributor type
|
2 to 1 |
|
Line designation
|
With Sign carrier |
|
Fastening type
|
With Accessories |
|
Product weight [g]
|
187,0 |
|
Electrical connection 1, function
|
Control screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 1, occupied pin / wire
|
4 |
|
Electrical connection 2, function
|
Field device screen |
|
Electrical connection 2, design
|
round |
|
Electrical connection 2, connection type
|
2x socket |
|
Electrical connection 2, cable output
|
straight |
|
Electrical connection 2, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 2, number of pins / wires
|
5 |
|
Electrical connection 2, occupied pin / wire
|
4 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Operating voltage range AC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
4 |
|
Surge voltage strength [kV]
|
0,8 |
|
Cable length 1 [MTR]
|
5,0 |
|
Line properties
|
Cable track+robot |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Minimum bending radius for freely moving use 1 [mm]
|
45 |
|
Cable diameter 1 [mm]
|
4,5 |
|
Conductor - nominal cross-section [mm²]
|
0,25 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-25 to 80 |
|
Information about ambient temperature
|
-10 ... 40 °C when fastening via throughway bores |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 80 |
|
Bearing temperature [°C]
|
-25 to 80 |
|
Material information
|
halogen free |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Housing material
|
PA |
|
Housing colour
|
#000000 |
|
Locking nut material
|
Nickel-plated brass |
|
Seals material
|
NBR |
|
Plug contacts material
|
Copper alloy gold plated |
|
Threaded sleeve material
|
Nickel-plated brass |
|
Cable length 2 [MTR]
|
0,3 |
|
Minimum bending radius for freely moving use 2 [mm]
|
45 |
|
Cable diameter 2 [mm]
|
4,5 |
|
Weight
|
187,0 g / Pcs |
|
Customs duty number
|
85366990 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEDY (english) , Data sheet |
