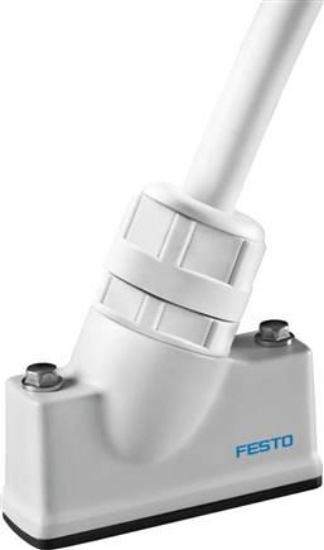

Based on standard
|
DIN 47100 |
|
Line designation
|
Without sign holder |
|
Connection frequency
|
50 |
|
Product weight [g]
|
1.800 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
Sub-D |
|
Electrical connection 1, number of pins / wires
|
44 |
|
Electrical connection 1, occupied pin / wire
|
36 |
|
Electrical connection 1, fastening type
|
2x screw 4-40 UNC |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
36 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
0,86 |
|
Protection line connection
|
Not available |
|
Cable length [MTR]
|
10,0 |
|
Line properties
|
Standard |
|
Bending radius, permanent cable placement [mm]
|
>= 39 mm |
|
Bending radius, moving cable placement [mm]
|
>= 115 mm |
|
Cable diameter [mm]
|
9,6 |
|
Tolerance cable diameter
|
± 0,2 mm |
|
Cable set up
|
36x0,25 |
|
Conductor - nominal cross-section [mm²]
|
0,25 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
Special features
|
Easy to clean |
|
ambient temperature [°C]
|
-5 to 60 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 60 |
|
Bearing temperature [°C]
|
-20 to 40 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#C6C6C6 |
|
Housing material
|
PA reinforced |
|
Housing colour
|
#C6C6C6 |
|
Screws material
|
Stainless steel |
|
Seals material
|
EPDM |
|
Plug contacts material
|
Bronze gold plated |
|
Insulation sleeve material
|
PVC |
|
Weight
|
1.800 g / Pcs |
|
GTIN
|
4052568225964 |
|
Customs duty number
|
85444290 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBV-S1 (english) , Data sheet |
