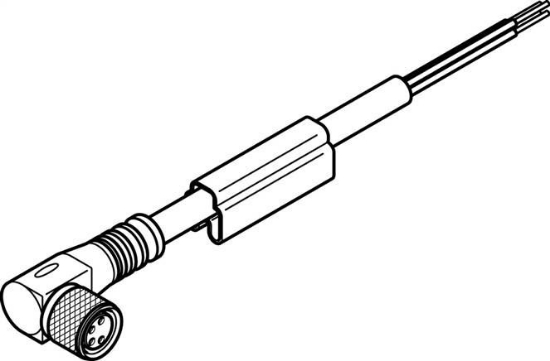

NEBU-M8W4-K-10-LE4 (575833) کابل اتصال فستو

کد سفارش تولید کننده: 575833
مشخصات
عنوان ویژگی مقدار ویژگی
Complies to standard EN 61076-2-104
Operating voltage range DC [V] 0 to 30
Operating voltage range AC [V] 0 to 30
Current carrying capacity at 40°C [A] 3,0
Surge voltage strength [kV] 0,8
Cable length [MTR] 10,0
Line properties Standard
Test conditions line Bending radius strength to Festo standard
Cable diameter [mm] 4,5
Cable set up 4x0,25
Conductor - nominal cross-section [mm²] 0,25
Protection category IP65
ambient temperature [°C] -25 to 70
Ambient temperature for moving cable placements [°C] -5 to 70
Material information Copper and PTFE-free
Degree of contamination 3
Corrosion resistant class KBK 2 - moderate corrosion stress
Cable sleeve material TPE-U(PUR)
Cable shield colour #C6C6C6
Housing material TPE-U(PUR)
Housing colour #000000
Insulation sleeve material PP
Line designation with 2x sign carrier
Electrical connection 1, function Field device screen
Electrical connection 1, design round
Electrical connection 1, connection type socket / container / ….
Electrical connection 1, cable output Angled
Electrical connection 1, connection technology M8x1, A coded to EN 61076-2-104
Electrical connection 1, number of pins / wires 4
Electrical connection 1, occupied pin / wire 4
Electrical connection 1, fastening type Screw lock
Electrical connection 2, function Control screen
Electrical connection 2, connection type cable
Electrical connection 2, connection technology Open end
Electrical connection 2, number of pins / wires 4
Electrical connection 2, occupied pin / wire 4
Tolerance cable diameter ± 0,1 mm
Information about protection category In mounted condition
Screw lock material brass, nickel-plated
Product weight [g] 272
Weight 272 g / Pcs
GTIN 4052568059514
Customs duty number 85444290
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: Connecting cables, universal (english) Data sheet
