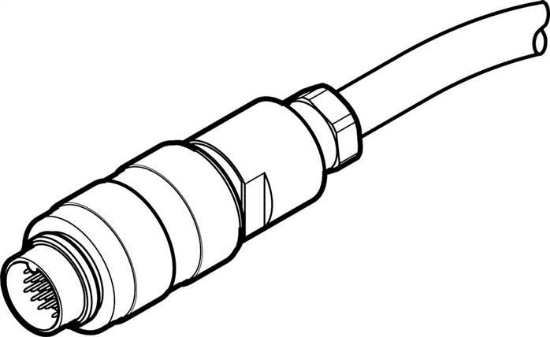

Line designation
|
Without sign holder |
|
Product weight [g]
|
1.490 |
|
Operating voltage range DC [V]
|
30 |
|
Current carrying capacity at 40°C [A]
|
1,0 |
|
Cable length [MTR]
|
10,0 |
|
Line properties
|
Standard |
|
Cable diameter [mm]
|
8,50 |
|
Cable set up
|
25x0,14 |
|
Protection category
|
IP67 |
|
ambient temperature [°C]
|
-30 to 70 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
1 |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#C6C6C6 |
|
Plug contacts material
|
brass, Gold plated |
|
Surge voltage strength [kV]
|
0,5 |
|
Complies to standard
|
DIN 47100 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M16x0,75 |
|
Electrical connection 1, number of pins / wires
|
24 |
|
Electrical connection 1, occupied pin / wire
|
24 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
25 |
|
Electrical connection 2, occupied pin / wire
|
24 |
|
Bending radius, permanent cable placement [mm]
|
> 51 mm |
|
Bending radius, moving cable placement [mm]
|
> 127.5 mm |
|
Conductor - nominal cross-section [mm²]
|
0,14 |
|
Wire ends
|
Cut dull |
|
Housing material
|
PA |
|
Screw lock material
|
brass, nickel-plated |
|
Insulation sleeve material
|
PVC |
|
Based on standard
|
EN 61076-2-106 |
|
Weight
|
1.490 g / Pcs |
|
GTIN
|
4052568288204 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBS (english) , Data sheet |
