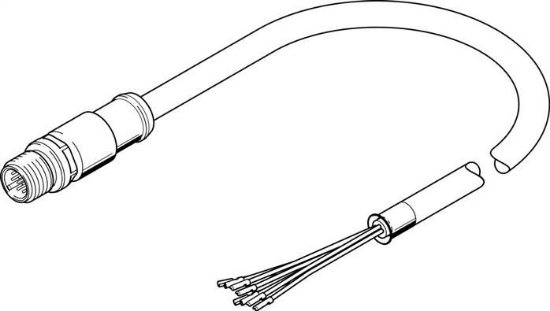

Line designation
|
With Accessories |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
1,5 |
|
Cable length [MTR]
|
5,0 |
|
Line properties
|
Cable track capable |
|
Test conditions line
|
Test conditions on request |
|
Cable diameter [mm]
|
6,50 |
|
Cable set up
|
12x0,25 |
|
Protection category
|
IP67 |
|
ambient temperature [°C]
|
-5 to 70 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#000000 |
|
Plug contacts material
|
brass, Gold plated |
|
Surge voltage strength [kV]
|
0,5 |
|
Complies to standard
|
EN 61076-2-101 |
|
Connection frequency
|
100 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 1, number of pins / wires
|
12 |
|
Electrical connection 1, occupied pin / wire
|
12 |
|
Electrical connection 1, fastening type
|
Screw lock with hexagonal SW13 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
12 |
|
Electrical connection 2, occupied pin / wire
|
12 |
|
Operating voltage range AC [V]
|
0 to 30 |
|
Bending radius, permanent cable placement [mm]
|
>= 32 mm |
|
Bending radius, moving cable placement [mm]
|
>= 65 mm |
|
Conductor - nominal cross-section [mm²]
|
0,25 |
|
Wire ends
|
Cut dull |
|
Information about protection category
|
In mounted condition |
|
Housing material
|
TPE-U(PUR) |
|
Housing colour
|
#000000 |
|
Screw lock material
|
Zinc pressure cast, nickel-plated |
|
Weight
|
330 g / Pcs |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBS (english) , Data sheet |
