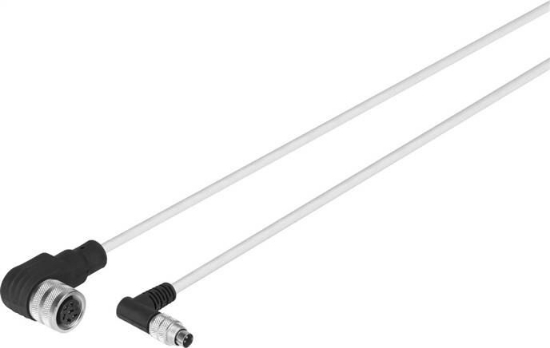

Additional functions
|
product specific pin assignment |
|
Line designation
|
With Accessories |
|
Product weight [g]
|
160 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
M16x0,75 |
|
Electrical connection 1, number of pins / wires
|
6 |
|
Electrical connection 1, occupied pin / wire
|
4 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, design
|
round |
|
Electrical connection 2, connection type
|
Plug |
|
Electrical connection 2, cable output
|
Angled |
|
Electrical connection 2, connection technology
|
M9x0,5 |
|
Electrical connection 2, number of pins / wires
|
5 |
|
Electrical connection 2, occupied pin / wire
|
4 |
|
Electrical connection 2, fastening type
|
Screw lock |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
3 |
|
Information about current load rating at 40 °C
|
2.3 A for 0,34 mm² |
|
Surge voltage strength [kV]
|
0,5 |
|
Cable length [MTR]
|
2 |
|
Line properties
|
Cable track capable |
|
Test conditions line
|
Test conditions on request |
|
Bending radius, moving cable placement [mm]
|
>= 75 mm |
|
Cable diameter [mm]
|
5,5 |
|
Cable set up
|
2x0,25+2x0,34+0,49 |
|
Conductor - nominal cross-section [mm²]
|
0,25 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-20 to 70 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
1 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#EDEDED |
|
Housing material
|
TPE-U(PUR) |
|
Housing colour
|
#000000 |
|
Screw lock material
|
brass, nickel-plated |
|
Plug contacts material
|
Bronze gold-plated |
|
Insulation sleeve material
|
TPE-U(PUR) |
|
Weight
|
160 g / Pcs |
|
GTIN
|
4052568224158 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet , Group data sheet: NEBP |
