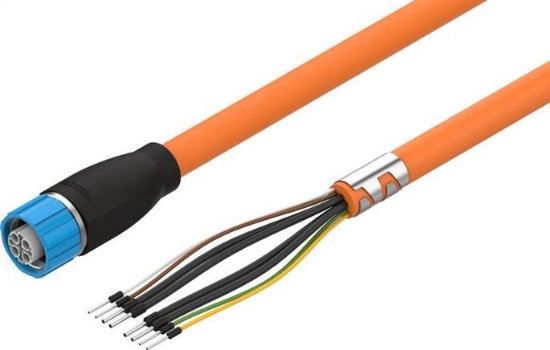

Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M16x0,75 |
|
Electrical connection 1, number of pins / wires
|
8 |
|
Electrical connection 1, occupied pin / wire
|
6 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
8 |
|
Electrical connection 2, occupied pin / wire
|
6 |
|
Operating voltage range DC [V]
|
0 to 600 |
|
Cable length [MTR]
|
25,00 |
|
Line properties
|
Cable track capable |
|
Bending radius, moving cable placement [mm]
|
>= 128 mm |
|
Cable diameter [mm]
|
12,8 |
|
Cable set up
|
4x1.5+2x(2x0.5) |
|
Conductor - nominal cross-section [mm²]
|
0,5 |
|
Wire ends
|
Wire end sleeve |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-50 to 90 |
|
Ambient temperature for moving cable placements [°C]
|
-40 to 90 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Material information
|
RoHs compliant |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#F7A600 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Insulation sleeve material
|
TPE-E |
|
Operating voltage range AC [V]
|
0 to 600 |
|
Degree of contamination
|
3 |
|
Information about operating voltage range DC
|
0 - 300 V for 0.5 mm² |
|
Information about operating voltage range AC
|
0 - 300 V for 0.5 mm² |
|
Current carrying capacity at 40°C [A]
|
16,0 |
|
Information about current load rating at 40 °C
|
8 A for 0.5 mm² |
|
Surge voltage strength [kV]
|
6,00 |
|
Information about surge voltage
|
4 kV for 0.5 mm² |
|
Bending radius, permanent cable placement [mm]
|
>= 64 mm |
|
Based on standard
|
EN 61984 |
|
Weight
|
6 kg / Pcs |
|
GTIN
|
4052568276317 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
