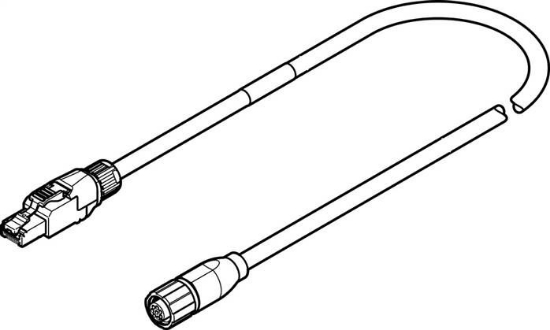

Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 1, number of pins / wires
|
8 |
|
Electrical connection 1, occupied pin / wire
|
8 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
Plug |
|
Electrical connection 2, connection technology
|
RJ45 |
|
Electrical connection 2, number of pins / wires
|
8 |
|
Electrical connection 2, occupied pin / wire
|
8 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Nominal operating voltage DC [V]
|
24 |
|
Cable length [MTR]
|
2,50 |
|
Line properties
|
Cable track capable |
|
Bending radius, moving cable placement [mm]
|
>= 68 mm |
|
Cable diameter [mm]
|
6,8 |
|
Cable set up
|
4x2x0,14 |
|
Conductor - nominal cross-section [mm²]
|
0,1400 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-40 to 80 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 80 |
|
Material information
|
RoHs compliant |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Operating voltage range AC [V]
|
0 to 30 |
|
Nominal operating voltage AC [V]
|
24 |
|
Electrical connection 2, design
|
Angular |
|
Electrical connection 2, cable output
|
straight |
|
Product weight [g]
|
180 |
|
Weight
|
180 g / Pcs |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EMME-AS (english) , Data sheet |
