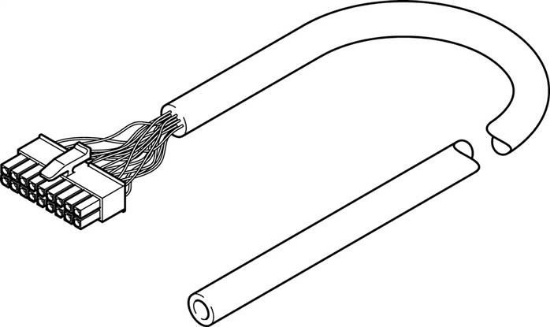

Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
Wiring diagram L5 |
|
Electrical connection 1, number of pins / wires
|
18 |
|
Electrical connection 1, occupied pin / wire
|
18 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
18 |
|
Electrical connection 2, occupied pin / wire
|
18 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Cable length [MTR]
|
10,00 |
|
Line properties
|
Cable track capable |
|
Bending radius, moving cable placement [mm]
|
>= 43 mm |
|
Cable diameter [mm]
|
8,5 |
|
Cable set up
|
18x0,25 |
|
Conductor - nominal cross-section [mm²]
|
0,2500 |
|
Wire ends
|
Cut dull |
|
Protection category
|
IP20 |
|
Information about protection category
|
IP65 during assembly of terminal boxes |
|
ambient temperature [°C]
|
-40 to 80 |
|
Ambient temperature for moving cable placements [°C]
|
-40 to 80 |
|
Material information
|
RoHs compliant |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Insulation sleeve material
|
TPE-E |
|
Operating voltage range AC [V]
|
0 to 30 |
|
Degree of contamination
|
3 |
|
Current carrying capacity at 40°C [A]
|
5,0 |
|
Surge voltage strength [kV]
|
1,50 |
|
Bending radius, permanent cable placement [mm]
|
>= 26 mm |
|
Test conditions line
|
Test conditions on request |
|
Housing material
|
PA |
|
Housing colour
|
#000000 |
|
Weight
|
900 g / Pcs |
|
GTIN
|
4052568276263 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
