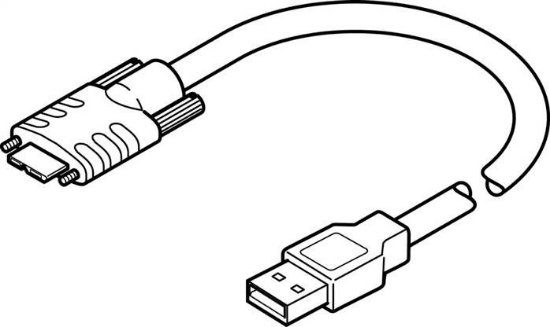

Cable length [MTR]
|
5,00 |
|
Material information
|
halogen free |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
USB 3.0 type B micro |
|
Electrical connection 1, number of pins / wires
|
10 |
|
Electrical connection 1, occupied pin / wire
|
9 |
|
Electrical connection 1, fastening type
|
2x Schraube M2x0,4 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
Plug |
|
Electrical connection 2, connection technology
|
USB 3.0 Typ A |
|
Electrical connection 2, number of pins / wires
|
9 |
|
Electrical connection 2, occupied pin / wire
|
9 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Line properties
|
Standard |
|
Bending radius, permanent cable placement [mm]
|
>= 125 mm |
|
Cable diameter [mm]
|
7,3 |
|
Cable set up
|
2xAWG24+2x(2xAWG24)C+(2xAWG23) |
|
Conductor - nominal cross-section [mm²]
|
0,21 |
|
Protection category
|
IP20 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-20 to 80 |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 80 |
|
Degree of contamination
|
1 |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#000000 |
|
Product weight [g]
|
282 |
|
Current carrying capacity at 40°C [A]
|
1,00 |
|
Bending radius, moving cable placement [mm]
|
>= 125 mm |
|
Surge voltage strength [kV]
|
0,3 |
|
Test conditions line
|
Test conditions on request |
|
Electrical connection 2, design
|
Angular |
|
Electrical connection 2, cable output
|
straight |
|
Weight
|
282 g / Pcs |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBC (english) , Data sheet |
