installation position
|
arbitrary |
|

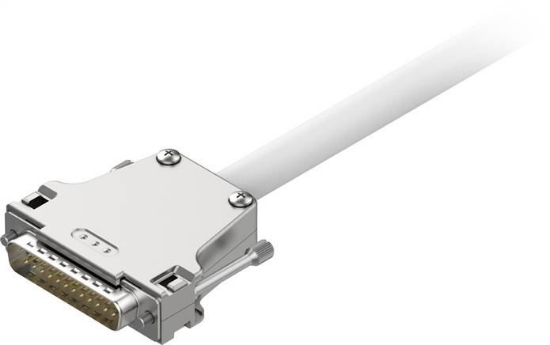

Electrical connection 1
|
Plug straight, Sub-D, 25 pin |
|
Electrical connection 2
|
Open end, 26-wire |
|
Cable length [MTR]
|
2,50 |
|
Material information
|
RoHs compliant |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Nominal operating voltage DC [V]
|
24 |
|
Cable diameter [mm]
|
10,8 |
|
Cable set up
|
5x(2x0.25)+16x0.25 |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-30 to +80 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 80 |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#C6C6C6 |
|
Product weight [g]
|
570 |
|
Tolerance cable diameter
|
± 0,2 mm |
|
Housing material
|
Zinc pressure cast |
|
Plug contacts material
|
Nickel and gold plated |
|
Insulation sleeve material
|
PVC |
|
Current carrying capacity [A]
|
3,9 |
|
Surge voltage strength [kV]
|
0,8 |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Min. cable bending radius [mm]
|
220 |
|
Connection cross-section [mm²]
|
0,25 |
|
Weight
|
570 g / Pcs |
|
GTIN
|
4052568194147 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBC (english) , Data sheet |
