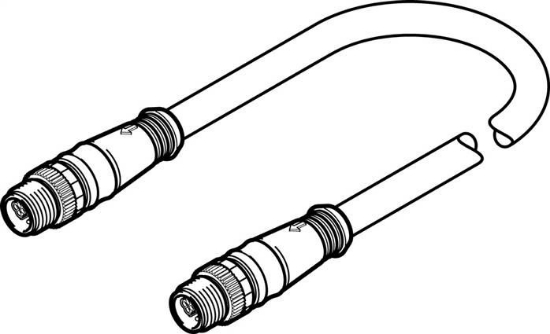

Cable length [MTR]
|
0,50 |
|
Material information
|
halogen free |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
Hybrid plug |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M12x1 coded Festo specific |
|
Electrical connection 1, number of pins / wires
|
8 |
|
Electrical connection 1, occupied pin / wire
|
8 |
|
Electrical connection 1, fastening type
|
Screw lock with SW14 and longitudinal knurl |
|
Electrical connection 2, function
|
Field device screen |
|
Electrical connection 2, connection type
|
Hybrid plug |
|
Electrical connection 2, connection technology
|
M12x1 coded Festo specific |
|
Electrical connection 2, number of pins / wires
|
8 |
|
Electrical connection 2, occupied pin / wire
|
8 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Line properties
|
Standard |
|
Bending radius, permanent cable placement [mm]
|
>= 24 mm |
|
Cable diameter [mm]
|
8,0 |
|
Cable set up
|
(1x(4x0.14))+4x0.75 |
|
Conductor - nominal cross-section [mm²]
|
0,14 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-25 to 70 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Degree of contamination
|
3 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#EDEDED |
|
Based on standard
|
Measurements acc. to EN 61076-2-101 |
|
Connection frequency
|
100 |
|
Product weight [g]
|
69 |
|
Current carrying capacity at 40°C [A]
|
7,00 |
|
Bending radius, moving cable placement [mm]
|
>= 56 mm |
|
Tolerance cable diameter
|
± 0,2 mm |
|
Special features
|
Oil resistant |
|
Bearing temperature [°C]
|
-40 to 70 |
|
Housing material
|
TPE-U(PUR) |
|
Housing colour
|
#000000 |
|
Plug contacts material
|
brass, Gold plated |
|
Insulation sleeve material
|
PP |
|
Surge voltage strength [kV]
|
0,8 |
|
Test conditions line
|
Test conditions on request |
|
Electrical connection 2, design
|
round |
|
Electrical connection 2, cable output
|
straight |
|
Electrical connection 2, fastening type
|
Screw lock with SW14 and longitudinal knurl |
|
Information about current load rating at 40 °C
|
1.5 A for 0.14 mm² |
|
Screw lock material
|
brass, nickel-plated |
|
Permission
|
c UL us - Recognized (OL) |
|
Weight
|
69 g / Pcs |
|
Customs duty number
|
85444290 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBC (english) , Data sheet |
