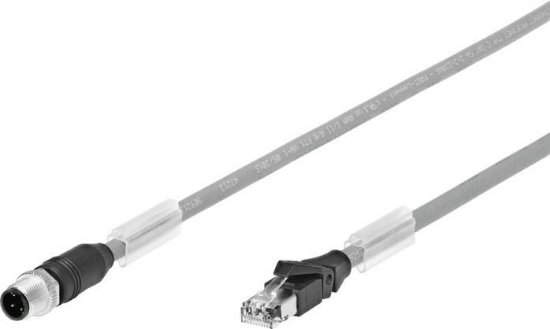

Electrical connection 1
|
Plug straight, M12x1, 4 pin, D-coded |
|
Electrical connection 2
|
Plug straight, RJ45, 4 pin |
|
Cable length [MTR]
|
5,00 |
|
Material information
|
Copper and PTFE-free |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Complies to standard
|
EN 61076-2-101 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Line properties
|
Cable track capable |
|
Cable diameter [mm]
|
6,7 |
|
Cable set up
|
2x(2x0,34) |
|
Conductor - nominal cross-section [mm²]
|
0,34 |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-25 to 80 |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 60 |
|
Degree of contamination
|
3 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#76B82A |
|
Current carrying capacity at 40°C [A]
|
1,76 |
|
Special features
|
Oil resistant |
|
Housing material
|
PA |
|
Housing colour
|
#000000 |
|
Plug contacts material
|
brass |
|
Insulation sleeve material
|
PE |
|
Surge voltage strength [kV]
|
0,8 |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Min. cable bending radius [mm]
|
100 |
|
Transfer properties
|
According to category 5 EN 50173, class D |
|
Ethernet cable specification
|
Type: CAT.5 |
|
Threaded sleeve material
|
Zinc pressure cast |
|
Weight
|
360 g / Pcs |
|
Customs duty number
|
85444290 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBC (english) , Data sheet |
