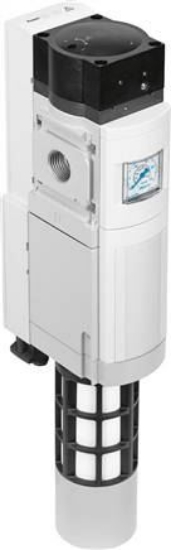

Model series
|
MS |
|
size
|
6 |
|
Pitch dimension [mm]
|
62 |
|
Safety function
|
Venting |
|
Safety Integrity Level (SIL)
|
Venting/ SIL 3 |
|
Performance Level (PL)
|
Venting/ up to Category 4, PLe |
|
Information about force dynamic sampling
|
Switching frequency at least 1/month |
|
Construction set up
|
Piston seat |
|
Freedom from cross-talk
|
no |
|
Actuation type
|
Electrical |
|
Control air supply
|
Internal |
|
Sealing principle
|
Soft |
|
Exhaust function
|
Cannot be throttled |
|
Position detection principle
|
Magnetic piston principle |
|
Complies to standard
|
DIN EN ISO 13849-1 |
|
Hand assist actuation
|
none |
|
Reset mode
|
Mechanical spring |
|
Control type
|
pilot operated |
|
Valve function
|
3/2 closed monostable |
|
Operating pressure [bar]
|
3.5 to 10 |
|
pressure display
|
with pressure gauge |
|
C-value []
|
19,3 |
|
b-value
|
0.21 |
|
Normal nominal flow [l/min]
|
4.300 |
|
Normal flow Venting 6>0 bar [l/min]
|
9.000 |
|
Max. switching frequency [hz]
|
1 |
|
Shifting time off [ms]
|
40 |
|
Shifting time on [ms]
|
130 |
|
Power-on time
|
100% |
|
Signal condition display
|
LED |
|
Nominal operating voltage DC [V]
|
24 |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Material information
|
RoHs compliant |
|
Protection category
|
IP65 |
|
Medium temperature [°C]
|
-10 to 50 |
|
ambient temperature [°C]
|
-10 to 50 |
|
Bearing temperature [°C]
|
-10 to 50 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Permission
|
RCM mark |
|
Certified awarding point
|
IFA 1001180 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Food compatibility
|
See expanded material information |
|
Fastening type
|
pipe installation |
|
installation position
|
arbitrary |
|
Product weight [g]
|
2.200 |
|
Pneumatic connection 1
|
G1/2 |
|
Pneumatic connection 2
|
G1/2 |
|
Pneumatic connection 3
|
G1 |
|
electrical connection:
|
Sub-D |
|
Housing material
|
Aluminium die casting |
|
Seals material
|
NBR |
|
Piston rod material
|
High-alloyed stainless steels |
|
Noise level [Dezibel (?]
|
75 |
|
Weight
|
2.200 g / Pcs |
|
GTIN
|
4052568190125 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Soft-start and exhaust valves, MS series (english) , Data sheet |
