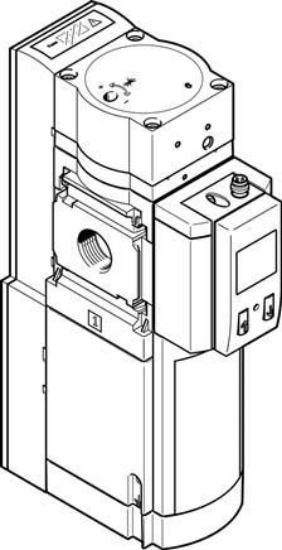

Model series
|
MS |
size
|
6 |
Pitch dimension [mm]
|
62 |
Safety function
|
Venting |
Safety Integrity Level (SIL)
|
Venting/ SIL 3 |
Performance Level (PL)
|
Venting/ up to Category 4, PLe |
Information about force dynamic sampling
|
Switching frequency at least 1/month |
Construction set up
|
Piston seat |
Freedom from cross-talk
|
no |
Actuation type
|
Electrical |
Control air supply
|
Internal |
Sealing principle
|
Soft |
Exhaust function
|
Cannot be throttled |
Position detection principle
|
Magnetic piston principle |
Complies to standard
|
DIN EN ISO 13849-1 |
Hand assist actuation
|
none |
Reset mode
|
Mechanical spring |
Control type
|
pilot operated |
Valve function
|
3/2 closed monostable |
Operating pressure [bar]
|
3.5 to 10 |
pressure display
|
With Pressure sensor |
C-value []
|
19,3 |
b-value
|
0.21 |
Normal nominal flow [l/min]
|
4.300 |
Normal flow Venting 6>0 bar [l/min]
|
9.000 |
Max. switching frequency [hz]
|
1 |
Shifting time off [ms]
|
40 |
Shifting time on [ms]
|
130 |
Power-on time
|
100% |
Signal condition display
|
LED |
Nominal operating voltage DC [V]
|
24 |
Permitted voltage oscillations
|
± 10 % |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
Material information
|
RoHs compliant |
Protection category
|
IP65 |
Medium temperature [°C]
|
0 to 50 |
ambient temperature [°C]
|
0 to 50 |
Bearing temperature [°C]
|
0 to 50 |
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
Permission
|
RCM mark |
Certified awarding point
|
IFA 1001180 |
CE certificate (see declaration of conformity)
|
to EU EMC directive |
Food compatibility
|
See expanded material information |
Fastening type
|
pipe installation |
installation position
|
arbitrary |
Product weight [g]
|
2.200 |
Pneumatic connection 1
|
G1/2 |
Pneumatic connection 2
|
G1/2 |
Pneumatic connection 3
|
G1 |
electrical connection:
|
Sub-D |
Housing material
|
Aluminium die casting |
Seals material
|
NBR |
Piston rod material
|
High-alloyed stainless steels |
Weight
|
2.200 g / Pcs |
GTIN
|
4052568209131 |
Customs duty number
|
84812090 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: Soft-start and exhaust valves, MS series (english) , Data sheet |
