size
|
6 |
|
Model series
|
MS |
|
installation position
|
arbitrary |
|
Construction set up
|

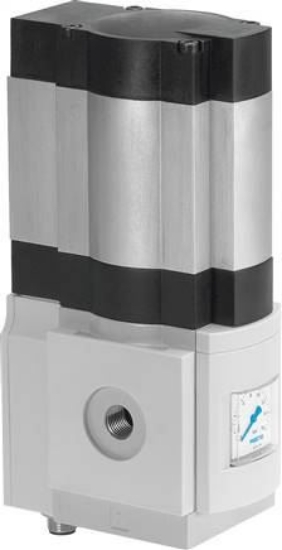

Electrically adjustable pressure regulator valve |
|
Short circuit resistance
|
for all electrical connections |
|
Controller function
|
Output pressure constant |
|
pressure display
|
with pressure gauge |
|
Operating pressure [bar]
|
0.8 to 20 |
|
Pressure regulation range [bar]
|
0.5 to 12 |
|
Max. pressure hysteresis [bar]
|
0,25 |
|
Normal nominal flow [l/min]
|
2.700 |
|
Control duration at 25 °C
|
max. 90s |
|
Design inputs
|
No galvanic separation |
|
Nominal operating voltage DC [V]
|
24 |
|
Power input in nominal operating voltage
|
max. 1 A |
|
Power input
|
max. 3.5 A at 24 V DC |
|
Ratio control duration: Pause
|
1:3 |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Air quality class 5:4 acc. to DIN ISO 8573-1 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 50 |
|
Food compatibility
|
See expanded material information |
|
Medium temperature [°C]
|
0 to 50 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
0 to 50 |
|
Product weight [g]
|
1.280 |
|
Cable interface
|
Input: M12x1 plug, 5 pin |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Diaphragm material
|
NBR |
|
Weight
|
1.280 g / Pcs |
|
GTIN
|
4052568168728 |
|
Customs duty number
|
84811099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Pressure regulators, MS series (english) , Data sheet |
