size
|
12 |
|
Model series
|
MS |
|
Actuation fuse
|
Rotary button with stopper |
|
installation position
|
vertical ± 5° |
|
Filter porosity [Mikrometer]
|
40 |
|
Condensate drain
|
Manually cycling |
|
Construction set up
|

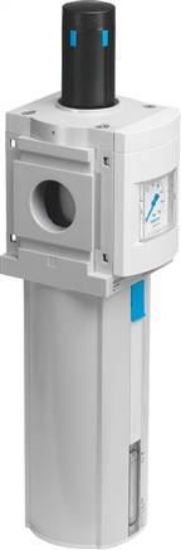

Filter regulator with pressure gauge |
|
Max. condensate amount [ml]
|
400 |
|
Controller function
|
Output pressure constant |
|
Clamp protection
|
Integrated as metal bowl |
|
pressure display
|
with pressure gauge |
|
Operating pressure [bar]
|
2 to 12 |
|
Pressure regulation range [bar]
|
0.5 to 12 |
|
Max. pressure hysteresis [bar]
|
0,4 |
|
Flow secondary venting [l/min]
|
500 |
|
Normal nominal flow [l/min]
|
12000 to 17000 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:-] |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Medium temperature [°C]
|
5 to 60 |
|
ambient temperature [°C]
|
5 to 60 |
|
Product weight [g]
|
7.000 |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
Internal |
|
Pneumatic connection 2
|
Internal |
|
Cover material
|
PA |
|
Swirl disc material
|
POM |
|
Filter carrier material
|
POM |
|
Sight glass metal clamps material
|
PC |
|
Control panel material
|
POM |
|
Seals material
|
NBR |
|
Spring material
|
spring steel |
|
Filter material
|
sintered bronze |
|
Housing material
|
Aluminium die casting |
|
Diaphragm material
|
NBR |
|
Clamps material
|
Aluminium wrought alloy |
|
Dividing plate material
|
POM |
|
Valve tappet material
|
NBR |
|
Calming disc material
|
POM |
|
Weight
|
7.000 g / Pcs |
|
GTIN
|
4052568172244 |
|
Customs duty number
|
84811005 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Filter regulators, MS series (english) , Data sheet |
