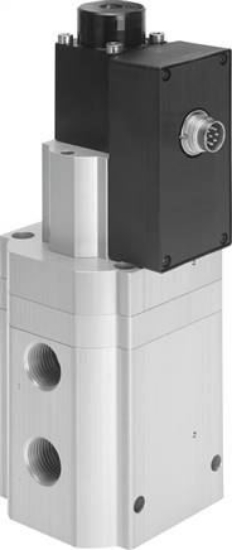

Nominal width ventilation [mm]
|
11 |
|
Nominal width venting [mm]
|
12 |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Construction set up
|
Pre-controlled piston control valve |
|
Short circuit resistance
|
for all electrical connections |
|
Safety instructions
|
Safety position MPPES |
|
Reverse polarity protection
|
for all electrical connections |
|
Valve function
|
3-way proportional pressure regulator valve closed |
|
Pressure regulation range [bar]
|
0 to 6 |
|
Input pressure 1 [bar]
|
7 to 8 |
|
Max. pressure hysteresis [bar]
|
0,05 |
|
Shifting time off [ms]
|
660 |
|
Shifting time on [ms]
|
230 |
|
Operating voltage range DC [V]
|
18 to 30 |
|
residual ripple
|
10 % |
|
TARGET / ACTUAL value
|
Current type 4 - 20 mA |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
0 to 60 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
0 to 50 |
|
Permission
|
RCM mark |
|
Product weight [g]
|
2.670 |
|
electrical connection:
|
M16x0,75 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
G1/2 |
|
Pneumatic connection 2
|
G1/2 |
|
Pneumatic connection 3
|
G1/2 |
|
Material information
|
RoHs compliant |
|
Housing material
|
Aluminium wrought alloy |
|
Diaphragm material
|
NBR |
|
Weight
|
2.670 g / Pcs |
|
GTIN
|
4052568148003 |
|
Customs duty number
|
84811099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: MPPES (english) , Data sheet |
