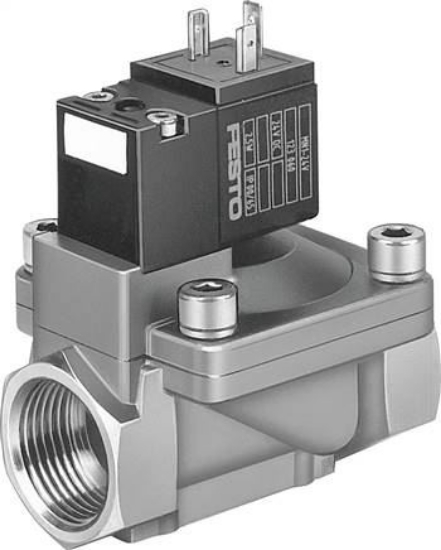

Construction set up
|
diaphragm valve |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
G1 1/2 |
|
electrical connection:
|
Wiring diagram Form A acc. to EN 175301-803 |
|
Nominal width [mm]
|
40 |
|
Valve function
|
2/2 closed monostable |
|
Hand assist actuation
|
With Accessories ratcheting |
|
Flow direction
|
Not reversible |
|
medium
|
Filtered compressed air, filter porosity 200 µm |
|
Exhaust function
|
Cannot be throttled |
|
Coil characteristic value
|
110 V AC: 50 Hz, pull-in power 5 VA, holding power 3.7 VA |
|
Reset mode
|
Pneumatic spring |
|
Control type
|
pilot operated |
|
Medium pressure [bar]
|
0.5 to 10 |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Normal nominal flow [l/min]
|
30.500 |
|
Shifting time on [ms]
|
230 to 440 |
|
Shifting time off [ms]
|
300 to 1000 |
|
Housing material
|
Brass |
|
Screws material
|
High-alloyed stainless steels |
|
Material number screw
|
1.4301 |
|
Product weight [g]
|
2.600 |
|
Protection category
|
IP65 |
|
Weight
|
2.600 g / Pcs |
|
GTIN
|
4052568129262 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: MN1H-MS (english) , Data sheet |
