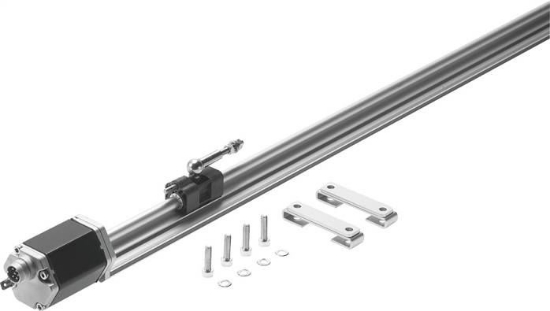

CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Measurement principle travel measurement system
|
Digital |
|
ambient temperature [°C]
|
-40 to 75 |
|
Max. movement speed [m/s]
|
10 |
|
Max. movement acceleration [Meter pro ]
|
200 |
|
Resolution travel [mm]
|
< 0,01 mm |
|
Independent linearity
|
0.02 % |
|
Temperature coefficient [Teile eine]
|
15 |
|
Stroke [mm]
|
500 |
|
output signal
|
CAN protocol type SPF-AIF |
|
Nominal operating voltage DC [V]
|
24 |
|
Permitted voltage oscillations
|
-15 % / +20 % |
|
Max. power input [mA]
|
90 |
|
electrical connection:
|
6 pin |
|
Construction set up
|
Closed profile |
|
Parallel offset coupling
|
± 1,5 mm |
|
Angle offset carrier
|
± 1 ° |
|
installation position
|
arbitrary |
|
Product weight [g]
|
950 |
|
Housing material
|
Aluminium wrought alloy |
|
Sliding carriage housing material
|
PBT reinforced |
|
Sliding carriage coupling material
|
Steel |
|
Cover material
|
Aluminium die casting |
|
Assembly clamps material
|
PEI |
|
Protection category
|
IP65 |
|
Oscillation strength to DIN/IEC 68 part 2-6
|
Tested to severity class 1 |
|
Continuous impact strength DIN&EC 68 parts 2-82
|
Tested to severity class 1 |
|
Weight
|
950 g / Pcs |
|
GTIN
|
4052568144104 |
|
Customs duty number
|
90318020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Displacement encoders (english) , Data sheet |
