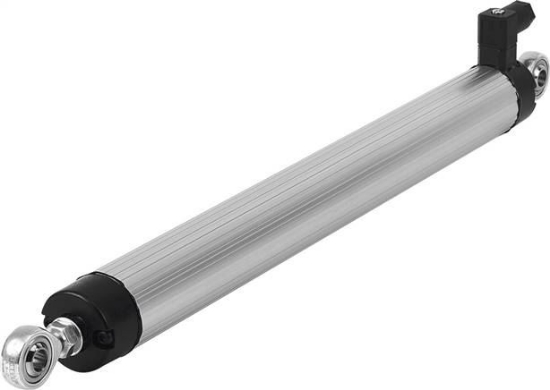

CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Measurement principle travel measurement system
|
Analogue |
|
ambient temperature [°C]
|
-30 to 100 |
|
Recommended grinder current [Mikroamper]
|
< 1 µA |
|
Max. grinder current short term [Mikroamper]
|
10.000 |
|
Max. movement speed [m/s]
|
5 |
|
Max. movement acceleration [Meter pro ]
|
200 |
|
Resolution travel [mm]
|
0,01 |
|
Independent linearity
|
0.04 % |
|
Temperature coefficient [Teile eine]
|
5 |
|
Stroke [mm]
|
750 |
|
output signal
|
Analogue |
|
Connection resistance [Kilo-Ohm]
|
10 |
|
Tolerance connection resistance [%]
|
20 |
|
Nominal operating voltage DC [V]
|
10 |
|
Max. operating voltage DC [V]
|
42 |
|
Permitted voltage oscillations
|
< 1 % |
|
Max. power input [mA]
|
4 |
|
electrical connection:
|
16 mm |
|
Construction set up
|
With Pusher rod |
|
Angle offset carrier
|
± 12.5 ° |
|
installation position
|
arbitrary |
|
Product weight [g]
|
1.900 |
|
Housing material
|
Aluminium wrought alloy |
|
Cover material
|
PBT reinforced |
|
Pusher rod material
|
High-alloyed stainless steels |
|
Bearing seal material
|
NBR |
|
Rod seal material
|
PTFE |
|
Protection category
|
IP65 |
|
Oscillation strength to DIN/IEC 68 part 2-6
|
Tested to severity class 2 |
|
Continuous impact strength DIN&EC 68 parts 2-82
|
Tested to severity class 2 |
|
Weight
|
1.900 g / Pcs |
|
GTIN
|
4052568117665 |
|
Customs duty number
|
90318020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Displacement encoders (english) , Data sheet |
