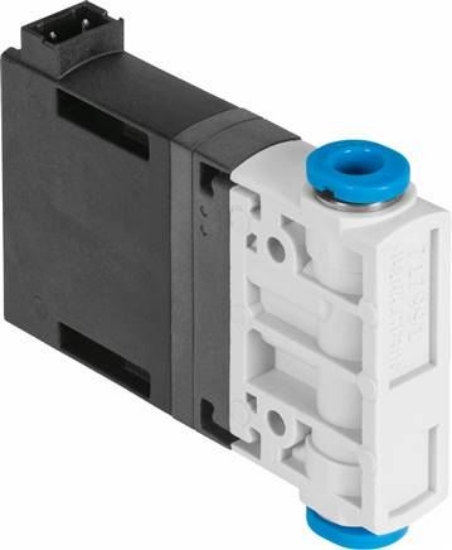

Valve function
|
2/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
9 |
|
Normal nominal flow [l/min]
|
160 |
|
Operating pressure [bar]
|
0.5 to 6 |
|
Construction set up
|
Poppet valve without reset spring |
|
Reset mode
|
Pneumatic spring |
|
Protection category
|
IP40 |
|
Pitch dimension [mm]
|
9,5 |
|
Information about operation
|
Do not operate without flow |
|
Sealing principle
|
Hard |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
none |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
b-value
|
0.36 |
|
C-value []
|
0,66 |
|
Max. switching frequency [hz]
|
500 |
|
Shifting time on at 4 bar and 24 V in new condition [ms]
|
1,0 |
|
Shifting time off at 4 bar and 24 V in new condition [ms]
|
0,5 |
|
Shifting time on at 4 bar and 48 V in new condition [ms]
|
0,8 |
|
Shifting time off at 4 bar and 48 V in new condition [ms]
|
0,4 |
|
Shifting time on at 4 bar and 12 V in new condition [ms]
|
1,4 |
|
Shifting time off at 4 bar and 12 V in new condition [ms]
|
0,6 |
|
Shifting time on at 0.5 bar and 24 V in new condition [ms]
|
0,9 |
|
Shifting time off at 0.5 bar and 24 V in new condition [ms]
|
0,7 |
|
Shifting time on at 6 bar and 24 V in new condition [ms]
|
1,3 |
|
Shifting time off at 6 bar and 24 V in new condition [ms]
|
0,5 |
|
Tolerance shifting time on
|
±15 % |
|
Tolerance shifting time off
|
+15%/-25% |
|
Operating voltage range DC [V]
|
12 to 53 |
|
Information about operating voltage
|
Only with MHJ9-KMH-... line. |
|
Coil resistance [Ohm]
|
5,0 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Limits ambient and media temperature
|
Depending on the switching frequency |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 50 |
|
Permitted surface temperature magnet [°C]
|
120 |
|
Medium temperature [°C]
|
-5 to 60 |
|
ambient temperature [°C]
|
-5 to 60 |
|
Product weight [g]
|
30 |
|
electrical connection:
|
2 pin |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
QS-6 |
|
Pneumatic connection 2
|
QS-6 |
|
Material information
|
RoHs compliant |
|
Seals material
|
HNBR |
|
Housing material
|
PA reinforced |
|
Screws material
|
Steel |
|
Operating conditions according to DIN/VDI 0580
|
S3 15% 20 min. for block mounting |
|
Weight
|
30 g / Pcs |
|
GTIN
|
4052568100698 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: MHJ (english) , Data sheet |
