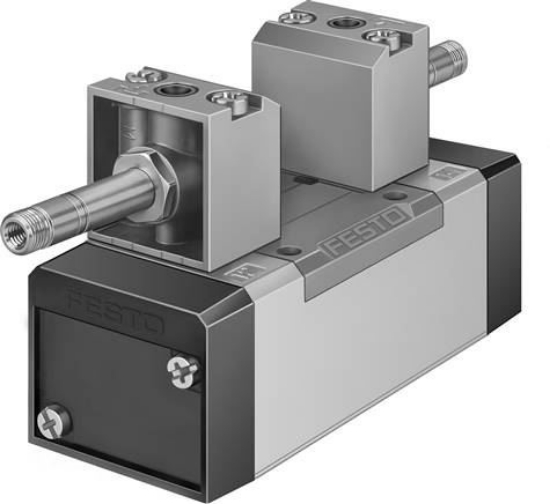

Valve function
|
5/3 ventilated |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
42 |
|
Normal nominal flow [l/min]
|
1.200 |
|
Operating pressure [bar]
|
3 to 10 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Nominal width [mm]
|
8,0 |
|
Pitch dimension [mm]
|
43 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 5599-1 |
|
Hand assist actuation
|
With Accessories ratcheting |
|
ISO-Code
|
158 |
|
Control type
|
pilot operated |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Coverage
|
positive Überdeckung |
|
Shifting time off [ms]
|
36 |
|
Shifting time on [ms]
|
18 |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
2.200 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
3.700 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Medium temperature [°C]
|
-10 to 60 |
|
Noise level [Dezibel (?]
|
85 |
|
ambient temperature [°C]
|
-5 to 40 |
|
Product weight [g]
|
520 |
|
electrical connection:
|
Via f-coil, order separately |
|
Fastening type
|
on connection plate |
|
Pneumatic connection 1
|
Connection plate Size 1 to ISO 5599-1 |
|
Pneumatic connection 2
|
Connection plate Size 1 to ISO 5599-1 |
|
Pneumatic connection 3
|
Connection plate Size 1 to ISO 5599-1 |
|
Pneumatic connection 4
|
Connection plate Size 1 to ISO 5599-1 |
|
Pneumatic connection 5
|
Connection plate Size 1 to ISO 5599-1 |
|
Material information
|
RoHs compliant |
|
Seals material
|
HNBR |
|
Housing material
|
Aluminium die casting |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Control air 14 connection
|
Connection plate Size 1 to ISO 5599-1 |
|
Control air 12 connection
|
Connection plate Size 1 to ISO 5599-1 |
|
Maritime classification
|
see Certificate |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
|
Weight
|
520 g / Pcs |
|
GTIN
|
4052568010461 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Standard valves to ISO 5599-1 (english) , Data sheet |
