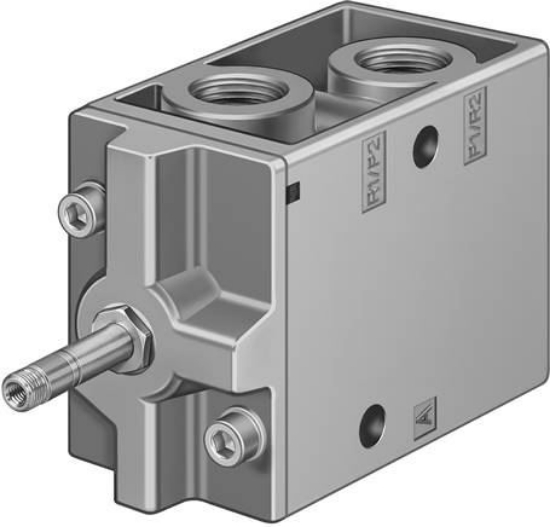

Valve function
|
3/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
68,0 |
|
Normal nominal flow [l/min]
|
7.500 |
|
Operating pressure [bar]
|
-0.95 to 10 |
|
Construction set up
|
Plate seat |
|
Reset mode
|
Mechanical spring |
|
Nominal width [mm]
|
19 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Flow direction
|
Reversible |
|
Coverage
|
negative Überdeckung |
|
Control pressure [bar]
|
1 to 8 |
|
Shifting time off [ms]
|
32 |
|
Shifting time on [ms]
|
36 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Medium temperature [°C]
|
-10 to 60 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-5 to 40 |
|
Product weight [g]
|
1.260 |
|
electrical connection:
|
Via f-coil, order separately |
|
Fastening type
|
With throughway bores |
|
Control air 12 connection
|
G1/8 |
|
Pneumatic connection 1
|
G3/4 |
|
Pneumatic connection 2
|
G3/4 |
|
Pneumatic connection 3
|
G3/4 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Hand assist actuation
|
Ratcheting |
|
Protection category
|
IP65 |
|
Permission
|
c UL us - Recognized (OL) |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
2.200 |
|
Coil characteristic value
|
See solenoid coil, order separately |
|
Exhaust control connection 82
|
M5 |
|
Weight
|
1.260 g / Pcs |
|
GTIN
|
4052568111953 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Tiger Classic (english) , Data sheet |
