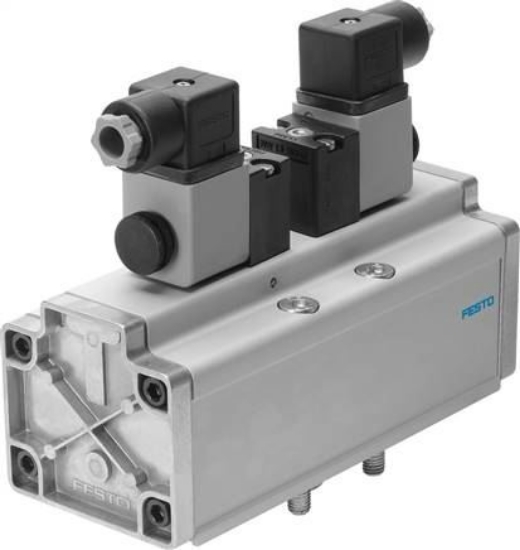

Valve function
|
5/3 closed |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
76 |
|
Normal nominal flow [l/min]
|
4.800 |
|
Operating pressure [bar]
|
3 to 16 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Nominal width [mm]
|
18,0 |
|
Pitch dimension [mm]
|
82 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 5599-1 |
|
Hand assist actuation
|
tentative |
|
ISO-Code
|
456 |
|
Control type
|
pilot operated |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Coverage
|
positive Überdeckung |
|
Shifting time off [ms]
|
290 |
|
Shifting time on [ms]
|
85 |
|
Power-on time
|
100% |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
4.300 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
2.100 |
|
Coil characteristic value
|
48 V AC: 50/60 Hz, pull-in power 14.5 VA, holding power 9.9 VA |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Medium temperature [°C]
|
-10 to 60 |
|
Noise level [Dezibel (?]
|
85 |
|
ambient temperature [°C]
|
-10 to 50 |
|
Product weight [g]
|
2.600 |
|
electrical connection:
|
acc. to DIN EN 175301-803 |
|
Fastening type
|
on connection plate |
|
Exhaust control connection 84
|
M5 |
|
Pneumatic connection 1
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 2
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 3
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 4
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 5
|
Connection plate Size 4 to ISO 5599-1 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium |
|
Exhaust control connection 82
|
M5 |
|
Weight
|
2.600 g / Pcs |
|
GTIN
|
4052568111984 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Standard valves to ISO 5599-1 (english) , Data sheet |
