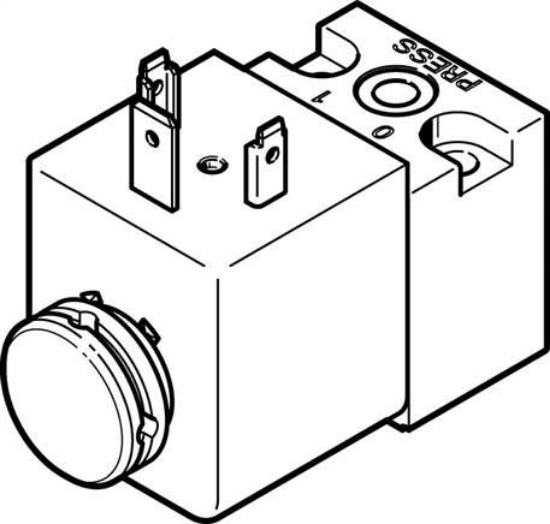

Valve function
|
3/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
30 |
|
Normal nominal flow [l/min]
|
50 |
|
Operating pressure [bar]
|
1 to 16 |
|
Construction set up
|
Plate seat |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Nominal width [mm]
|
1,3 |
|
Pitch dimension [mm]
|
42 |
|
Exhaust function
|
Cannot be throttled |
|
Based on standard
|
ISO 15218 |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 15218 |
|
Hand assist actuation
|
tentative |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
Freedom from cross-talk
|
no |
|
Shifting time off [ms]
|
9 |
|
Shifting time on [ms]
|
11 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
110 V AC: 50 Hz, pull-in power 14.5 VA, holding power 10.5 VA |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
-15 to 80 |
|
ambient temperature [°C]
|
-15 to 50 |
|
Product weight [g]
|
140 |
|
electrical connection:
|
Wiring diagram Form A acc. to EN 175301-803 |
|
Fastening type
|
on connection plate |
|
Pneumatic connection 1
|
Connection plate |
|
Pneumatic connection 2
|
Connection plate |
|
Pneumatic connection 3
|
Not recorded |
|
Material information
|
RoHs compliant |
|
Seals material
|
FPM |
|
Permitted frequency oscillations
|
± 10 % |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Weight
|
140 g / Pcs |
|
GTIN
|
4052568068240 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Standard valves to ISO 5599-1 (english) , Data sheet |
