size
|
Micro |
|
Model series
|
D |
|
installation position
|
vertical ± 5° |
|
Construction set up
|

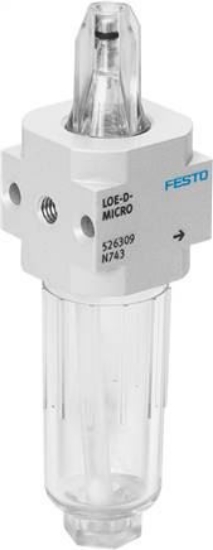

Proportional standard oil mist lubricator |
|
Max. oil filling volume [cm³]
|
6,5 |
|
Operating pressure [bar]
|
1 to 10 |
|
Minimum flow for oiler function [l/min]
|
3 |
|
Normal nominal flow [l/min]
|
200 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [7:4:-] |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
39 |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
M5 |
|
Pneumatic connection 2
|
M5 |
|
Material information
|
RoHs compliant |
|
Clamps material
|
PC |
|
Housing material
|
Aluminium die casting |
|
Weight
|
39 g / Pcs |
|
GTIN
|
4052568084080 |
|
Customs duty number
|
84248970 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Lubricators, D series (english) , Data sheet |
