size
|
Mini |
|
Model series
|
D |
|
Actuation fuse
|
Rotary button with stopper |
|
installation position
|
vertical ± 5° |
|
Filter porosity [Mikrometer]
|
40 |
|
Condensate drain
|
Fully automatic |
|
Construction set up
|

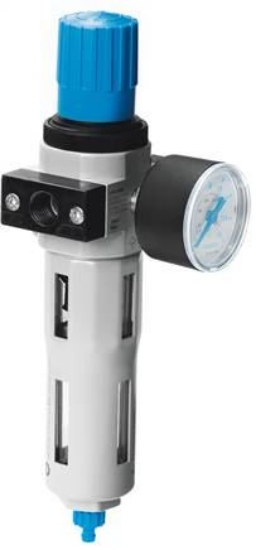

Filter regulator with pressure gauge |
|
Max. condensate amount [ml]
|
22 |
|
Clamp protection
|
Metal protection basket |
|
pressure display
|
with pressure gauge |
|
Operating pressure [bar]
|
2 to 12 |
|
Pressure regulation range [bar]
|
0.5 to 7 |
|
Max. pressure hysteresis [bar]
|
0,2 |
|
Normal nominal flow [l/min]
|
900 |
|
Operating medium
|
Inert gases |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [7:8:4] |
|
Medium temperature [°C]
|
5 to 60 |
|
ambient temperature [°C]
|
5 to 60 |
|
Maritime classification
|
see Certificate |
|
Product weight [g]
|
460 |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
G1/8 |
|
Pneumatic connection 2
|
G1/8 |
|
Material information
|
RoHs compliant |
|
Housing material
|
Zinc pressure cast |
|
Clamps material
|
PC |
|
Weight
|
460 g / Pcs |
|
GTIN
|
4052568132293 |
|
Customs duty number
|
84811005 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Filter regulators, D series (english) , Data sheet |
